The Critical Role of Anti-Reverse Mechanisms in Advanced Rotary Drone Systems
In the rapidly evolving landscape of unmanned aerial vehicles (UAVs), precision, safety, and operational reliability are paramount. While much focus is often placed on flight dynamics, navigation, and payload capabilities, the intricate mechanics of various auxiliary systems play an equally vital role in pushing the boundaries of drone utility. Among these, rotary systems designed for deployment, retrieval, or precise articulation represent a significant area of innovation. For such systems, often referred to conceptually as “spinning reels” due to their spooling or rotating action, an effective anti-reverse mechanism is not merely a convenience but an absolute necessity for ensuring controlled, predictable, and safe operation.
When we speak of a “spinning reel” in this context, we are referring to any drone-integrated system that involves the controlled rotation of a spool, drum, or other rotary component. Prime examples include tethered power and data systems, which allow drones to remain airborne for extended durations or transmit large volumes of data securely. These systems typically involve a tether, often a sophisticated composite cable containing power lines and fiber optics, meticulously wound onto a drum. Other applications might include winch systems for payload deployment and retrieval, allowing drones to pick up or drop off items with precision without landing. In all these scenarios, uncontrolled reverse rotation – whether due to external forces, power failure, or operational error – can lead to catastrophic consequences. These range from tangled tethers and damaged payloads to loss of control, endangering the drone itself and any assets or personnel in its vicinity. Therefore, a robust anti-reverse mechanism acts as a fundamental safeguard, guaranteeing unidirectional control and preventing unintended backlash or unwinding, which is critical for maintaining mission integrity and prolonging equipment lifespan.
Engineering Anti-Reverse: Principles and Implementation for Drone Winches and Tethers
The implementation of anti-reverse functionality in drone-integrated rotary systems typically involves a combination of mechanical and electronic engineering principles, often synergistically employed to achieve optimal performance and redundancy. Each approach offers distinct advantages and addresses specific operational challenges.
Mechanical Anti-Reverse Solutions
Mechanical anti-reverse systems are foundational, offering robust and often failsafe protection against backward rotation. These solutions are generally passive and rely on physical engagement to arrest reverse motion.
One common method involves pawl and ratchet systems. Here, a toothed wheel (ratchet) is engaged by a pivoted lever (pawl). When the spool rotates in the forward direction, the pawl slides over the ratchet teeth. However, if the spool attempts to reverse, the pawl locks into a tooth, immediately stopping the backward motion. The precision and strength of such a system depend on the tooth geometry, material properties, and the spring mechanism that holds the pawl in place. While effective and simple, pawl and ratchet systems can introduce a small amount of backlash (free play) before engagement and may generate audible clicks during operation.

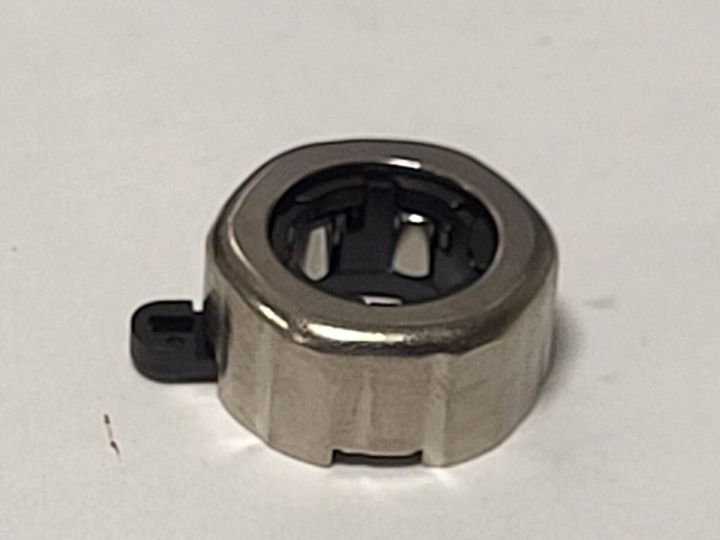

Another highly effective mechanical approach utilizes one-way clutches. These devices allow free rotation in one direction but instantly lock up to prevent rotation in the opposite direction. Common types include roller clutches and sprag clutches. Roller clutches use rollers that wedge between an inner and outer race when reverse torque is applied, creating a positive lock. Sprag clutches employ asymmetric sprags that tilt and wedge similarly. One-way clutches offer very low backlash, near-silent operation, and a high torque capacity relative to their size, making them ideal for applications requiring smooth, precise control without significant free play. Their compactness is a significant advantage in drone design where space and weight are critical constraints. Both pawl-and-ratchet and one-way clutch systems are invaluable for providing an immediate, mechanical arrest of reverse motion, often serving as a primary safety layer or a critical backup in the event of power loss.
Electronic and Software-Controlled Anti-Reverse
Beyond purely mechanical solutions, modern drone technology leverages sophisticated electronic and software controls to manage rotary systems with unprecedented precision. These methods offer dynamic control and adaptability, complementing or even surpassing the capabilities of purely mechanical systems in certain contexts.
Motor braking techniques are a primary electronic method. In applications using brushless DC motors (the prevalent type in drones), various braking modes can be employed. Dynamic braking involves short-circuiting the motor windings, dissipating kinetic energy as heat and rapidly bringing the motor to a halt. Regenerative braking, more advanced, converts the motor’s kinetic energy back into electrical energy, recharging the battery or feeding other systems, providing a more efficient deceleration.
Closed-loop control systems, integrating sensors like encoders with advanced algorithms, provide the highest level of precision. Encoders provide real-time feedback on the spool’s exact position and rotational speed. This data is fed into a flight controller or dedicated motor controller, which then precisely modulates the motor’s power and direction. If any unintended reverse motion is detected, the controller can instantly apply corrective torque in the forward direction or engage braking to maintain the desired position or motion profile. These systems allow for highly nuanced control, such as maintaining constant tension on a tether, even in turbulent wind conditions.
The integration of these electronic controls with the drone’s overall mission planning software allows for highly intelligent anti-reverse capabilities. For instance, predetermined tension profiles can be maintained during payload deployment, or automatic retraction sequences can be initiated in emergency scenarios. While offering superior precision and flexibility, electronic systems require continuous power and are subject to potential software glitches or sensor failures, underscoring the value of hybrid approaches.
Hybrid Approaches
The most robust anti-reverse solutions for critical drone applications often involve a hybrid strategy, combining mechanical failsafes with electronic precision. A common setup might see a primary electronic closed-loop control system managing the spool’s movement with high accuracy, while a mechanical one-way clutch or pawl system acts as an independent backup. In the event of power loss, motor failure, or a software anomaly, the mechanical system instantly engages, preventing uncontrolled unwinding. This redundancy ensures maximum safety and reliability, reflecting the mission-critical nature of many advanced drone operations.
Enhancing Operational Safety and Precision through Controlled Rotation
The implementation of effective anti-reverse mechanisms in rotary drone systems profoundly enhances both operational safety and precision, thereby broadening the capabilities and reliability of UAVs across numerous applications. The benefits extend far beyond simply preventing backward motion, influencing everything from delicate sensor deployment to robust payload handling in challenging environments.
One of the most immediate and critical advantages is the prevention of uncontrolled deployment or retraction. Imagine a tethered drone providing persistent surveillance, powered by a ground station via its cable. An unexpected power surge or motor malfunction could, without anti-reverse, cause the tether to rapidly spool out, leading to entanglement, structural damage to the drone or tether, or even a crash. Conversely, uncontrolled retraction could over-tension the cable, risking snapping or damage to the drone’s attachment point. Anti-reverse ensures that the tether or cable remains under constant, deliberate control, safeguarding the drone, its payload, and any ground assets or personnel. This is particularly vital for precision operations like deploying scientific instruments into hazardous areas or delivering fragile packages, where any unexpected motion could compromise the mission or cause irreparable damage.
Beyond safety, anti-reverse mechanisms are instrumental in maintaining exact positioning and stability. For drone-based sensors that rely on a rotating platform, such as certain LiDAR systems or multi-spectral cameras mounted on a rotary gimbal, unintended reverse movement, even minute, can corrupt data integrity or misalign sensing fields. An anti-reverse system ensures that these components move only as intended, allowing for the capture of highly accurate, repeatable data crucial for mapping, inspection, or scientific research. Similarly, in applications requiring precise payload placement, such as drone construction or automated repairs, the ability to stop and hold a payload at an exact elevation or position without drift is paramount.
Furthermore, controlled rotation significantly mitigates wear and tear on mechanical components and the tether itself. Smooth engagement and disengagement of the anti-reverse mechanism, coupled with the prevention of sudden jerks or uncontrolled motion, reduces stress on gears, bearings, motor shafts, and the cable’s sheathing. This extends the operational lifespan of expensive components, reduces maintenance overheads, and enhances the drone’s overall readiness. It also prevents kinks, abrasions, or over-stretching of the tether, which can compromise its structural integrity and data transmission capabilities.
Finally, effective anti-reverse systems contribute to the drone’s resilience in adverse conditions. High winds, unexpected gusts, or external physical disturbances can exert significant forces on a deployed tether or a delicate rotary mechanism. A robust anti-reverse system provides the necessary resistance to maintain stability against these external pressures, ensuring that the drone can continue its mission without deviation or risk, even when subjected to environmental challenges. This capability is essential for operations in demanding environments, from offshore inspections to disaster response scenarios.
Beyond Winches: Broader Implications for Drone Innovation
While the concept of an anti-reverse “spinning reel” most intuitively applies to tethered systems and winches, its underlying principles — ensuring unidirectional motion control and preventing unintended backlash or reversal — have far broader implications for drone innovation. As UAVs become more complex and capable, integrating an array of advanced functionalities, the need for precise rotary control extends to numerous other subsystems.
One significant area is robotic manipulators and grippers. Drones equipped with robotic arms for inspection, sample collection, or object manipulation require highly precise control over every joint. Many of these joints involve rotary motion. An anti-reverse mechanism ensures that once a robotic arm’s joint reaches a specific angle, it holds that position firmly, resisting external forces or the weight of an object being manipulated. This prevents “sag” or unintended rotation that could compromise a delicate task or drop a valuable payload. Such precision is vital for tasks like opening valves, attaching sensors to structures, or performing intricate repairs.
Another frontier is advanced sensor platforms. Beyond simple gimbals, future drone sensor arrays might involve complex, multi-axis rotating platforms for highly specialized sensors such as advanced LiDAR, synthetic aperture radar (SAR), or hyperspectral imaging systems that require precise scanning patterns. An anti-reverse system ensures that the rotating sensor maintains its calibrated orientation and angular velocity, preventing any backward drift that could distort data or create anomalies in the collected imagery. This is critical for applications demanding extreme accuracy, like 3D mapping of intricate environments or precise agricultural analytics.
Furthermore, the concept is relevant in automated docking and charging stations. As drones move towards greater autonomy, their ability to self-dock and recharge is crucial. These systems often involve retractable mechanisms or engaging components that need to align precisely. An anti-reverse system could ensure that the docking mechanism only retracts or engages as intended, preventing accidental release or misalignment that could damage the drone or the station.
Even within modular payload systems, where different tools or sensors can be quickly attached or detached, anti-reverse principles could be applied. For example, if a payload requires rotation for activation or connection, an anti-reverse lock would ensure that the rotation is only in the correct direction and prevents accidental loosening.
Ultimately, “anti-reverse” can be viewed as a fundamental design principle for any rotating component within a drone system where unidirectional control or the prevention of backward movement is critical for function, safety, or data integrity. As drones integrate more complex mechanical systems, from advanced camera stabilization to sophisticated deployable structures, the ingenuity in designing effective anti-reverse solutions will play a pivotal role in expanding their capabilities and ensuring their reliability. Future developments will likely focus on miniaturization of these mechanisms, integration with smart materials that can change properties on demand, and AI-driven predictive maintenance for these critical rotary components, further solidifying their indispensable role in the next generation of UAV technology.
