In the rapidly evolving landscape of digital imaging, the demand for high-speed, uncompressed data transmission has never been greater. Whether you are a professional cinematographer, a specialized aerial photographer, or a high-end camera enthusiast, the physical interface through which your video data travels is as critical as the sensor capturing the light. Among the various connectors that have emerged to bridge the gap between compact hardware and professional-grade monitoring, the Mini HDMI—officially known as HDMI Type C—stands as the industry standard for high-performance imaging devices.
As cameras become more compact while their resolutions climb from 4K to 6K and beyond, the traditional full-sized HDMI port has often proven too cumbersome for sleek gimbal-mounted systems and mirrorless bodies. Conversely, the smaller Micro HDMI can sometimes lack the physical robustness required for intensive field use. Mini HDMI represents the perfect equilibrium, offering the full technical capabilities of the HDMI standard in a form factor optimized for the demands of modern imaging.
Understanding the Mini HDMI Standard (Type C)
To appreciate the role of Mini HDMI in the imaging world, one must first understand its technical architecture. The High-Definition Multimedia Interface (HDMI) was developed as a proprietary audio/video interface for transmitting uncompressed video data and compressed or uncompressed digital audio data. The Mini HDMI (Type C) was introduced with the HDMI 1.3 specification to accommodate portable devices without sacrificing the signal integrity found in the larger Type A connector.
Form Factor and Physical Characteristics

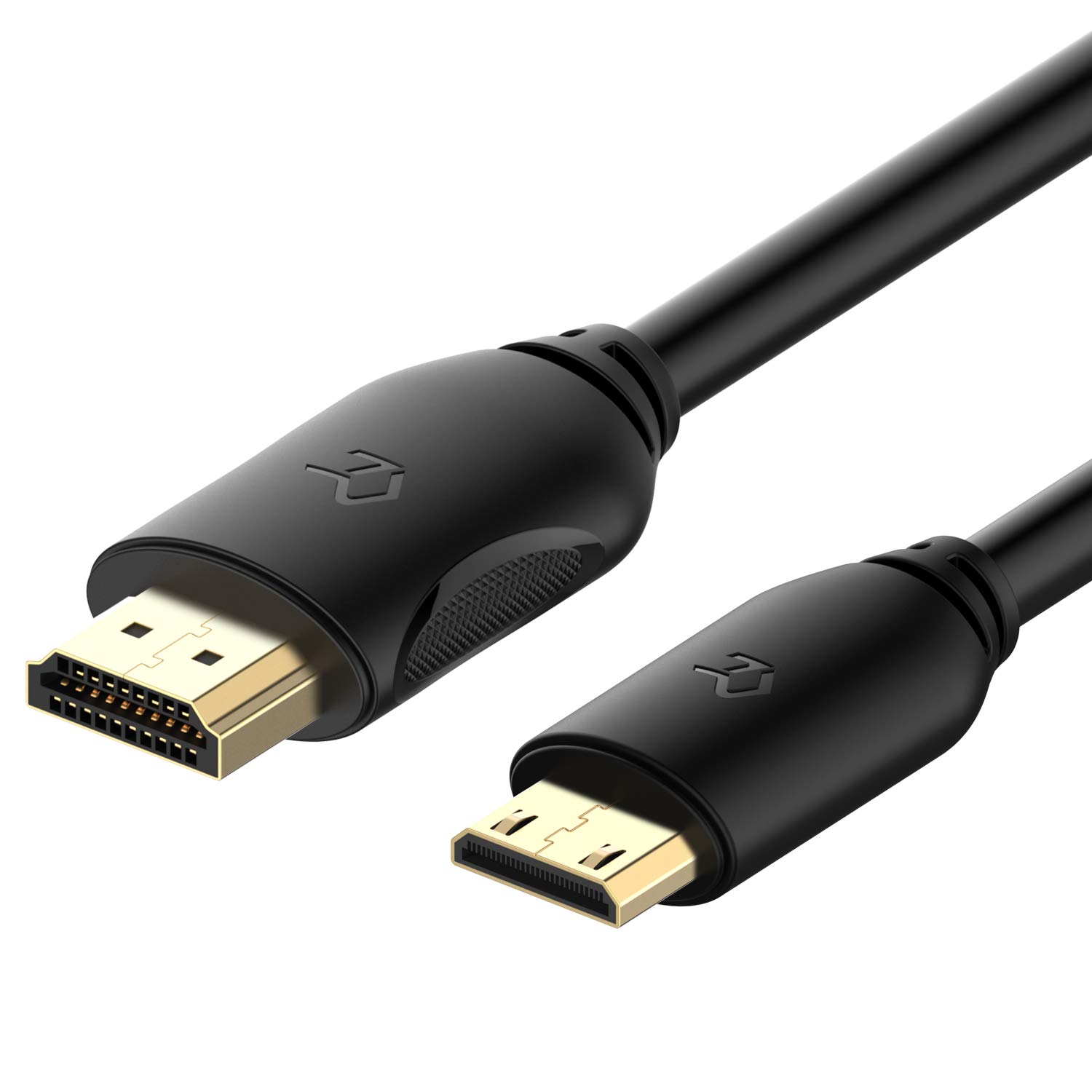

The Mini HDMI connector measures approximately 10.42 mm by 2.42 mm. While it is significantly smaller than the standard HDMI (Type A), which measures 13.9 mm by 4.45 mm, it retains the essential 19-pin configuration. This pin-for-pin mapping is crucial because it allows Mini HDMI to be electrically compatible with standard HDMI ports through simple, passive adapters or bi-directional cables. Unlike the Micro HDMI (Type D), which is even smaller and more fragile, the Mini HDMI provides a larger surface area for the plug’s housing, offering a more secure “click” and better resistance to lateral tension—a vital feature when a camera is moving on a multi-axis gimbal.
Technical Specifications and Bandwidth
Despite its smaller size, Mini HDMI is not a “lite” version of the technology. It supports the same bandwidth capabilities as its larger counterpart, depending on the version of the HDMI protocol being utilized (1.4, 2.0, or 2.1). For imaging professionals, this means a Mini HDMI port can easily handle 4K video at 60 frames per second with 10-bit color depth, provided the cable and the camera’s internal processing pipeline support it. It also supports Ethernet data transmission, Audio Return Channel (ARC), and high-resolution multi-channel audio, making it a comprehensive solution for capturing the full sensory experience of a scene.
The Evolution from Type A to Type C
The transition to Mini HDMI was driven by the “miniaturization” trend in professional imaging. As DSLR and mirrorless cameras began to replace bulky cinema cameras for many productions, manufacturers needed to reclaim precious real estate on the side of the camera body for heat dissipation and battery compartments. By adopting the Type C connector, manufacturers like Canon, Nikon, and Sony were able to maintain a high-quality video outport while reducing the overall profile of the device, paving the way for the ultra-portable professional setups we see today.
Why Mini HDMI is the Standard for Modern Imaging Devices
In the world of high-end imaging, equipment must be both powerful and agile. The selection of Mini HDMI as the primary output for many professional cameras is a calculated decision that balances the physical limitations of hardware with the rigorous demands of cinematic production.
Balancing Portability with Performance
For a camera operator, every millimeter and gram counts. A Mini HDMI port allows for a thinner camera chassis, which in turn makes the entire imaging rig easier to handle during long handheld shoots. However, performance cannot be compromised for the sake of size. Because Mini HDMI maintains the 19-pin structure, it avoids the signal degradation issues that can sometimes plague smaller, non-standard connectors. It ensures that the “clean out” signal—the raw video feed without camera overlays—reaches the external recorder with zero latency and full color fidelity.
The Role in High-Bitrate Video Transmission
Modern imaging workflows often involve shooting in Log profiles or RAW formats, which require massive amounts of data to be pushed through the output port. Mini HDMI ports are engineered to handle high-bitrate streams necessary for 4:2:2 10-bit recording. This is particularly important for color grading in post-production. Without the reliable throughput of a Mini HDMI interface, filmmakers would be limited to internal compressed recording, which often lacks the dynamic range required for high-end cinematic outputs.
Comparison with Micro HDMI (Type D)
While Micro HDMI is even smaller, it is frequently criticized in the professional imaging community for its lack of durability. The Micro HDMI port is prone to snapping or becoming loose after repeated use. In contrast, Mini HDMI offers a more robust physical connection that can withstand the vibrations and movement inherent in high-action filming. For professionals who cannot afford a signal drop-out in the middle of a critical take, the Mini HDMI is widely considered the minimum acceptable standard for reliability.
Integration in Professional Gimbals and Imaging Workflows
The utility of Mini HDMI extends far beyond the camera body itself. It is a vital link in the chain of professional monitoring and stabilization systems. In high-end imaging, the camera is rarely an isolated unit; it is part of an ecosystem that includes external monitors, wireless transmitters, and follow-focus systems.
Connecting to External Monitors and Field Recorders
One of the most common uses for Mini HDMI in the imaging world is connecting the camera to an external field monitor, such as those made by Atmos or SmallHD. These monitors provide a larger, brighter display than the camera’s built-in LCD, allowing cinematographers to check focus, exposure (via false color or histograms), and framing more accurately. Because Mini HDMI supports high-speed data, these external devices can also act as recorders, capturing video at higher bitrates than the camera might be capable of internally.
Live Feed Transmission for Remote Monitoring
In complex imaging setups—such as those involving heavy-lift gimbals or remote-operated camera cranes—the Mini HDMI port is used to feed the video signal into a wireless transmitter (like a Teradek). This allows the director or the focus puller to see exactly what the camera sees from a distance, in real-time. The stability of the Mini HDMI connection is paramount here; a loose cable could result in a total loss of the “eyes” of the operation, potentially ruining a costly shot.
Ensuring Signal Integrity in Harsh Environments
Professional imaging often takes place in demanding environments, from dusty deserts to humid rainforests. Mini HDMI cables are designed with better shielding than consumer-grade micro cables, protecting the digital signal from electromagnetic interference (EMI). In a rig crowded with wireless follow-focus motors, radio transmitters, and heavy-duty power cables, this shielding ensures that the video signal remains crisp and free of digital “snow” or artifacts.
Essential Considerations for Mini HDMI Cables and Adapters
Not all Mini HDMI connections are created equal. For those working in high-resolution imaging, choosing the right cable is just as important as the camera itself.
Shielding and Signal Loss
When dealing with 4K or 8K signals, the quality of the cable’s internal wiring is critical. High-quality Mini HDMI cables feature multi-layer shielding and gold-plated connectors to prevent signal degradation over distance. For imaging professionals, using a “High Speed” or “Ultra High Speed” certified cable is mandatory to ensure that the port’s full bandwidth is utilized.
Right-Angle vs. Straight Connectors for Gimbals
In the niche of gimbal-stabilized imaging, the physical orientation of the cable is a major factor. A straight Mini HDMI plug can often stick out and interfere with the gimbal’s axis of rotation, causing “motor stress” or limiting the range of movement. Professional imaging kits often utilize ultra-thin, “ribbon-style” Mini HDMI cables with right-angle connectors. These specialized cables minimize the footprint of the connection, allowing the gimbal to move freely without the cable acting as a mechanical tether.
Compatibility with 4K and HDR Workflows
As High Dynamic Range (HDR) becomes the standard for premium content, the Mini HDMI interface must support protocols like HDMI 2.0b or 2.1. These standards allow for the transmission of metadata required for HDR10 or Dolby Vision. When selecting equipment for an imaging pipeline, it is essential to verify that the Mini HDMI port on the camera and the receiving end (monitor or recorder) are both rated for the specific version of HDMI required for your desired frame rate and color space.
Conclusion: The Future of High-Speed Connectivity in Imaging
The Mini HDMI port remains a cornerstone of professional imaging because it solves a specific problem: providing a high-bandwidth, reliable video output in a space-efficient package. While new technologies like USB-C (DisplayPort Alt Mode) are beginning to enter the market, HDMI remains the “lingua franca” of the video world due to its universal compatibility with monitors and production switchers.
For the cinematographer or imaging specialist, understanding “what is Mini HDMI” is more than just knowing a plug shape; it is about understanding the lifeline of the digital image. It is the conduit that allows a 4K sensor to share its vision with the world, ensuring that every detail, every color grade, and every frame is transmitted with the absolute highest fidelity. As we push toward even higher resolutions and more complex imaging systems, the Mini HDMI standard will likely continue to be the bridge that connects the creative eye to the technical display.
