What is Annealing in PCR?

Understanding the Core Mechanism of Polymerase Chain Reaction

Polymerase Chain Reaction (PCR) is a cornerstone technique in molecular biology, enabling the amplification of specific DNA sequences. At its heart, PCR relies on a cyclical process of temperature changes, and one of the most critical stages within this cycle is annealing. This phase, often misunderstood by those new to the technique, is where the specificity of DNA amplification is established, allowing researchers to isolate and replicate target genetic material with remarkable precision. Without effective annealing, PCR would be a chaotic process, amplifying unintended DNA fragments and rendering experimental results unreliable.

The Three Pillars of PCR

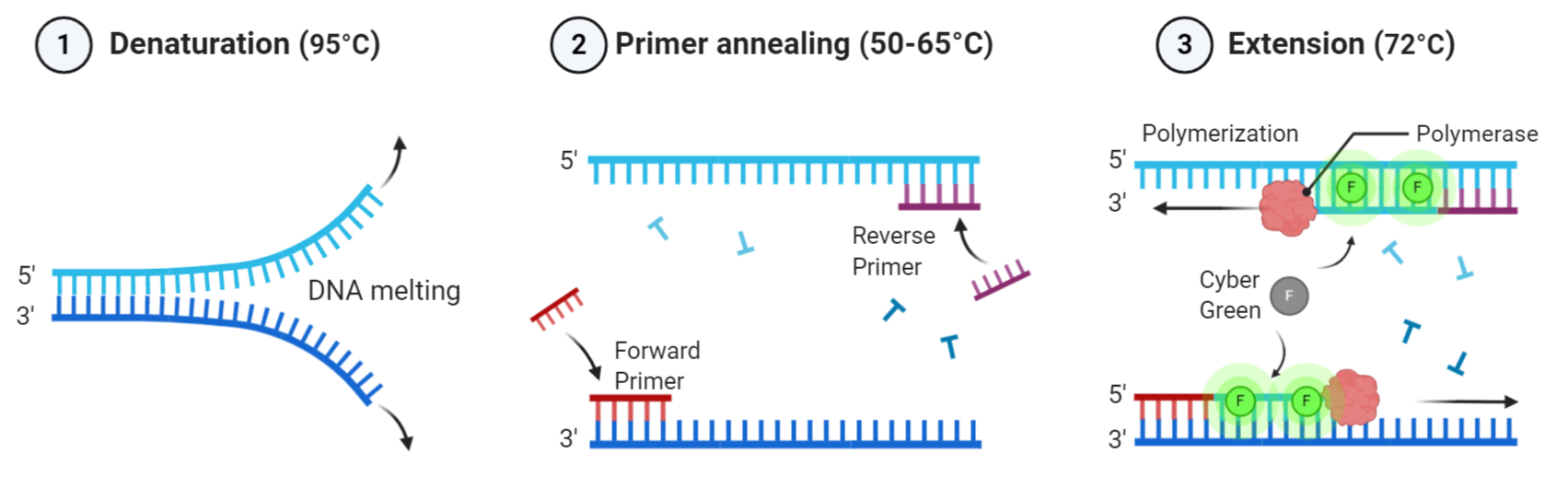

Before delving into annealing, it’s essential to grasp the fundamental stages of a standard PCR cycle. These three distinct steps, repeated numerous times to achieve exponential amplification, are:

• Denaturation: This is the initial step where the double-stranded DNA template is heated to a high temperature, typically 94-98°C. The heat breaks the hydrogen bonds holding the two strands together, effectively separating them into single strands. These single strands then serve as templates for the synthesis of new DNA molecules.
• Annealing: This is the crucial stage where the magic of specificity happens. After denaturation, the temperature is lowered significantly, allowing short, synthetic DNA fragments called primers to bind to their complementary sequences on the single-stranded DNA templates. This binding is highly specific and is dictated by the nucleotide sequence of the primers.
• Extension (or Elongation): In this final step, the temperature is raised to an optimal level for the DNA polymerase enzyme (commonly Taq polymerase) to function. The polymerase binds to the primer-template complex and begins to synthesize a new complementary DNA strand, extending from the primer and using the original single strand as a template.

The cycle then repeats, with each round of denaturation, annealing, and extension effectively doubling the amount of the target DNA sequence. This exponential amplification allows scientists to generate millions or billions of copies of a specific DNA segment from a very small initial sample, making it possible to study, analyze, or manipulate DNA sequences that would otherwise be present in vanishingly small quantities.

The Science of Specificity: Primer Binding During Annealing

The annealing stage is the linchpin for achieving targeted DNA amplification in PCR. Its success hinges on the precise interaction between short, synthetic DNA sequences known as primers and their complementary binding sites on the template DNA. These primers, typically 18-25 nucleotides in length, are designed by researchers to flank the specific region of DNA they wish to amplify.

Primer Design: The Foundation of Specificity

The efficacy of the annealing step is directly proportional to the quality of primer design. Several factors are paramount in ensuring that primers bind only to the intended target sequence and not to other, similar sequences within the complex mixture of DNA.

• Sequence Complementarity: The most fundamental requirement is that the primer sequence must be perfectly or near-perfectly complementary to the target DNA sequence at the primer binding site. Even a single mismatch can significantly reduce the binding efficiency and specificity. Bioinformatics tools and databases are extensively used to design primers that will bind to the desired locus and avoid binding to other regions.
• Melting Temperature (Tm): Each primer has a characteristic melting temperature (Tm), which is the temperature at which half of the primer molecules will dissociate from their complementary DNA strand. For effective annealing, the chosen temperature must be below the Tm of the primers, but not so low that non-specific binding occurs. Typically, the annealing temperature is set 3-5°C below the lower Tm of the primer pair.
• Primer Length and GC Content: Primer length influences Tm; longer primers generally have higher Tms. The GC content (percentage of guanine and cytosine bases) also plays a role, as G-C base pairs are held together by three hydrogen bonds, while A-T pairs have two, making GC-rich regions more stable. A balanced GC content (around 40-60%) is often preferred for optimal primer binding.
• Avoidance of Secondary Structures: Primers should be designed to avoid self-complementarity (forming primer dimers) or complementarity with other primers in the reaction. Such self-annealing can lead to the amplification of unwanted primer dimer products, which compete with the target DNA and reduce the yield of the desired amplicon.

The Annealing Temperature: A Delicate Balance

The temperature at which annealing occurs is arguably the most critical parameter in optimizing PCR specificity. It’s a delicate balance that needs to be carefully calibrated for each primer set and PCR reaction.

• Too High an Annealing Temperature: If the annealing temperature is set too high, it can prevent the primers from binding effectively to their target sequences. This is because the thermal energy is too great, disrupting the hydrogen bonds that are crucial for primer-template hybridization. Consequently, little to no amplification of the target sequence will occur.
• Too Low an Annealing Temperature: Conversely, if the annealing temperature is set too low, it can lead to non-specific binding. Primers may bind to sequences that are only partially complementary to them, resulting in the amplification of unintended DNA fragments. This can lead to a “smear” on gel electrophoresis or the presence of multiple bands, making it difficult to identify the true target amplicon.
• Optimizing Annealing Temperature: The optimal annealing temperature is typically determined empirically through a process called a “gradient PCR.” In this technique, a range of annealing temperatures is tested simultaneously in different wells of a PCR cycler. By analyzing the results from each temperature, researchers can identify the temperature that yields the strongest and most specific amplification of the target DNA, while minimizing non-specific products. This optimized temperature is then used for subsequent PCR runs.

The duration of the annealing step also plays a role. While typically short, usually ranging from 15 to 60 seconds, an adequate duration is necessary to allow sufficient primer-template hybridization. Insufficient annealing time can lead to lower yields, while excessively long annealing times generally do not improve specificity and can prolong the overall PCR run without significant benefit.

Factors Influencing Annealing Efficiency Beyond Temperature

While annealing temperature is paramount, several other factors contribute to the overall efficiency and specificity of the primer binding process during PCR. Understanding and controlling these variables are essential for obtaining reliable and reproducible results.

Salt Concentration and Its Role

The ionic strength of the PCR reaction buffer significantly impacts primer annealing. Buffers typically contain salts, such as potassium chloride (KCl), which are crucial for stabilizing the DNA double helix and facilitating the binding of primers to the template.

• Stabilization of DNA-Primer Hybrids: Cations, such as K+, present in the salt, interact with the negatively charged phosphate backbone of the DNA. This interaction effectively shields the negative charges, reducing electrostatic repulsion between the primer and the template strand, and thus promoting the formation and stability of the DNA-primer hybrid.
• Impact on Melting Temperature (Tm): Higher salt concentrations increase the Tm of DNA duplexes, including primer-template hybrids. This means that a higher temperature is required to melt these complexes. Consequently, when optimizing PCR, if you increase the salt concentration in the buffer, you may also need to increase the annealing temperature to maintain the desired level of specificity. Conversely, reducing salt concentration can lower the Tm, potentially leading to increased non-specific binding.
• Optimization of Buffer Composition: PCR buffer formulations are carefully designed to provide the optimal salt concentration for a given polymerase and set of primers. Deviations from the recommended buffer composition, such as using a different salt or an incorrect concentration, can significantly affect annealing efficiency and specificity.

Magnesium Ion Concentration: A Critical Cofactor

Magnesium ions (Mg2+) are essential cofactors for DNA polymerase activity. However, they also play a crucial, albeit indirect, role in the annealing stage by influencing the stability of nucleic acid structures and the interaction of primers with the template.

• Stabilizing DNA Structures: Mg2+ ions can stabilize the phosphodiester bonds in DNA and contribute to the stability of the DNA double helix. They can also influence the secondary structure of the template DNA, potentially making certain regions more or less accessible for primer binding.
• Facilitating Primer Annealing: While the primary role of Mg2+ is in enzyme activity, it is understood to also help in the formation of stable primer-template hybrids. It is believed to assist in neutralizing the negative charges on the phosphate backbone, similar to monovalent cations, thereby promoting annealing.
• Sensitivity to Concentration: The concentration of Mg2+ is highly sensitive and must be carefully optimized. Too little Mg2+ can lead to inefficient enzyme activity and poor primer annealing, while too much Mg2+ can lead to a reduction in specificity. High Mg2+ concentrations can stabilize even weakly bound primer-template complexes, promoting non-specific amplification. The optimal Mg2+ concentration is typically between 1.5 mM and 2.5 mM, but this can vary depending on the primer set, template DNA, and polymerase used.

Primer Concentration and Its Impact

The concentration of primers in a PCR reaction is another factor that can influence annealing and the overall amplification process.

• Competition for Binding Sites: If primer concentrations are too low, there may not be enough primer molecules to effectively bind to all available target sequences, leading to reduced amplification efficiency and yield.
• Promoting Non-Specific Binding: Conversely, excessively high primer concentrations can increase the likelihood of non-specific primer binding. With a large excess of primer molecules, they are more likely to encounter and bind to sequences that are not perfectly complementary, especially at suboptimal annealing temperatures. This can lead to the formation of primer dimers and other non-specific products.
• Optimizing Primer Concentration: Typically, primers are used at concentrations in the nanomolar range (e.g., 0.1 to 1 µM). The optimal concentration is often determined empirically alongside other PCR parameters to achieve the best balance between amplification efficiency and specificity.

By carefully controlling these factors – primer design, annealing temperature, salt concentration, magnesium ion concentration, and primer concentration – researchers can ensure that the annealing stage of PCR proceeds with high specificity, leading to accurate and reliable amplification of their target DNA sequences. This meticulous attention to detail is what makes PCR such a powerful and indispensable tool in modern molecular biology.
