The term “baghouse,” while sounding like it might relate to something carried or packed, is in fact a critical component within the realm of industrial dust collection and air pollution control. In essence, a baghouse is a large industrial filter designed to remove particulate matter from the air emitted by various industrial processes. Its primary function is to capture dust, fumes, and other airborne contaminants, thereby preventing their release into the atmosphere and protecting both the environment and the health of workers. Understanding what a baghouse is and how it operates is fundamental to appreciating the technological advancements in industrial air quality management.
The Fundamental Principles of Baghouse Operation
At its core, a baghouse operates on the principle of filtration, a process that has been utilized for centuries to separate solids from liquids or gases. In an industrial setting, this means using fabric filters, commonly referred to as “bags,” to trap particulate matter as dust-laden air passes through them. The air is drawn into the baghouse, flows through these specialized fabric bags, and exits as a cleaner gas. The dust and other particles are retained on the inner or outer surface of the bags, depending on the design.
How Dust-Laden Air Enters and Passes Through the System

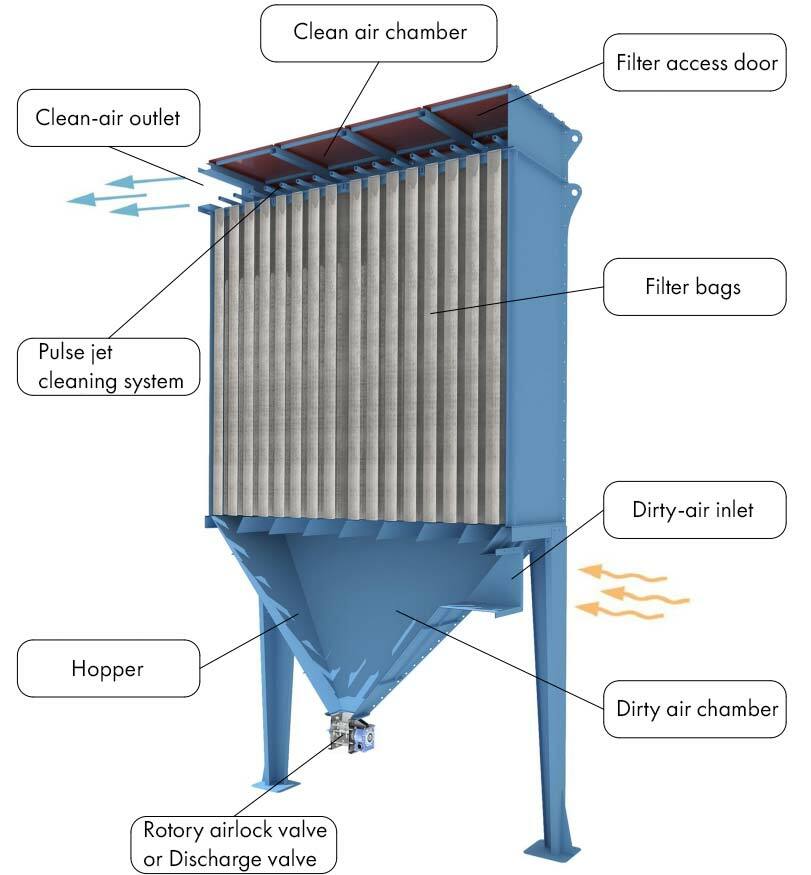

The journey of contaminated air through a baghouse begins with its entry into a large, typically rectangular or cylindrical housing. This housing contains a series of filter bags, suspended vertically or horizontally. A fan or blower system is instrumental in drawing the air from the industrial process – be it a manufacturing plant, power station, or quarry – into the baghouse. This airflow is carefully managed to ensure it passes efficiently through the filter media. The dirty air can enter from the top, bottom, or side of the baghouse, depending on the specific design and the nature of the dust.
The Role of Fabric Filters in Capturing Particulates
The heart of any baghouse lies in its fabric filters. These are not ordinary cloths; they are engineered specifically for industrial dust collection and are made from a variety of synthetic or natural fibers, chosen based on the operating temperature, chemical composition of the dust, and the required filtration efficiency. Common materials include polyester, acrylic, fiberglass, and even specialized high-temperature fabrics like P84 and aramid. The woven or felted structure of these fabrics creates a porous medium that allows clean air to pass through while physically trapping the solid particles. As the dust accumulates on the surface of the bags, a “dust cake” forms, which itself becomes an effective filtering layer, increasing the overall efficiency of the system.
The Mechanism of Particle Retention and Dust Cake Formation
The process of particle retention is a multi-faceted phenomenon within a baghouse. Initially, larger particles are captured by the physical pores of the fabric. As the dust cake builds up, it acts as a more effective barrier, capturing even finer particles through impaction, interception, and diffusion. Impaction occurs when larger particles, due to their inertia, deviate from the airflow and strike the filter surface. Interception happens when particles following the airflow come into close proximity to the filter fibers and adhere to them. Diffusion, particularly significant for very fine particles, is the random movement of particles caused by collisions with gas molecules, increasing their likelihood of encountering and sticking to the filter fibers. The formation of a stable and uniform dust cake is crucial for optimal baghouse performance; it enhances filtration efficiency and reduces the amount of particulate matter that escapes into the exhaust.
Types of Baghouses and Their Design Variations
Baghouses are not a one-size-fits-all solution. Their design and operational mechanisms are tailored to specific industrial needs and the types of pollutants they are designed to handle. The primary distinctions often lie in how the collected dust is removed from the filter bags.
Pulse-Jet Baghouses: Continuous Filtration with Compressed Air
Pulse-jet baghouses are one of the most prevalent types, distinguished by their continuous operation and efficient cleaning mechanism. In this design, the filter bags are typically mounted externally to the dirty air plenum. Dirty air enters from the bottom and flows upwards through the bags. The cleaning process involves injecting a short, high-pressure burst of compressed air into the top of each bag. This “pulse” creates a shockwave that dislodges the accumulated dust from the outer surface of the bag, causing it to fall into a hopper below. The key advantage of pulse-jet systems is that they can operate continuously without shutting down the main airflow for cleaning. This makes them ideal for applications where uninterrupted operation is critical.
Key features of Pulse-Jet Cleaning
The pulse-jet cleaning system is characterized by its simplicity and effectiveness. The compressed air is delivered through a manifold system equipped with venturi nozzles above each bag. When a pulse is initiated, the compressed air is rapidly injected down the length of the bag. The venturi effect helps to amplify the cleaning action by drawing in surrounding air, creating a more forceful cleaning wave. The timing and duration of these pulses are carefully controlled by a timer or a differential pressure controller, which monitors the pressure drop across the filter bags. A higher pressure drop typically indicates a thicker dust cake and the need for cleaning.
Applications and Advantages
Pulse-jet baghouses are widely used in industries such as cement manufacturing, power generation, asphalt plants, and metal processing. Their ability to handle high dust loads and their continuous operation make them a highly desirable choice. The compact design, as the bags are often externally mounted, also contributes to their popularity. Furthermore, the cleaning process is relatively gentle on the filter bags, leading to a longer lifespan for the filtration media.
Shaker Baghouses: Mechanical Cleaning for Intermittent Operation
Shaker baghouses represent an older but still effective technology, primarily used for applications with lower dust loads or where intermittent operation is acceptable. In these systems, the filter bags are typically mounted internally to the clean air plenum. Dirty air enters from the bottom and flows upwards through the bags. The cleaning process involves mechanically shaking the bags. This is achieved by a drive mechanism that imparts a vigorous side-to-side motion to the bags, causing the dust cake to break apart and fall into the hopper. Because shaking requires the airflow to be temporarily stopped or significantly reduced in sections of the baghouse, shaker systems are often designed with multiple compartments that can be isolated for cleaning.
The Shaking Mechanism and Dust Removal
The shaking mechanism in a shaker baghouse is designed to dislodge the dust cake through vibratory action. The drive unit, typically an electric motor connected to an eccentric shaft, oscillates a row of bag cages. This oscillation causes the filter bags to flex and shake, breaking the adhesive forces holding the dust cake to the fabric. The intensity and duration of the shaking are adjustable parameters to optimize cleaning. Once the shaking cycle is complete, the isolated compartment is returned to service.
Suitability for Lower Dust Load Applications
Shaker baghouses are well-suited for industries where the dust load is not exceptionally high and where the slight interruption in airflow for cleaning is not detrimental to the process. Examples include some woodworking operations, grain handling, and certain chemical processing applications. While they may require more maintenance due to the mechanical moving parts involved in the shaking mechanism, they can be a cost-effective solution for specific scenarios.
Reverse Air Baghouses: Gentle Cleaning with Low-Pressure Air
Reverse air baghouses offer a gentler approach to cleaning, utilizing a low-pressure stream of clean air to dislodge dust. In this design, the filter bags are usually mounted internally to the dirty air plenum. Dirty air enters from the bottom and flows upwards through the bags. For cleaning, a fan blows clean air back into the outlet manifold, creating a reverse flow of air that inflates and flexes the bags. This gentle inflation, often combined with some structural support to prevent full collapse, causes the dust cake to detach and fall into the hopper. Reverse air systems are known for their ability to extend the life of filter bags due to the less aggressive cleaning action.
The Reverse Airflow and Bag Inflation
The reverse air cleaning process is a deliberate and controlled method of dislodging dust. Unlike the high-pressure pulses of a pulse-jet system or the vigorous shaking of a shaker system, reverse air relies on a steady flow of clean air introduced in the opposite direction of the normal airflow. This reverse flow gently inflates the bags, causing them to expand and break the bond between the dust cake and the fabric. In some designs, internal cages or springs are used to provide some rigidity to the bags during the cleaning cycle, ensuring a more effective separation of the dust cake.
Advantages in Specific Industrial Environments
Reverse air baghouses are often preferred in environments where abrasive dust is prevalent or where filter bag longevity is a paramount concern. The gentler cleaning action reduces wear and tear on the fabric, leading to longer service intervals and reduced replacement costs. They are commonly found in applications such as coal-fired power plants, metallurgical industries, and certain food processing facilities.
Key Components and Considerations in Baghouse Design
Beyond the filtration media and the cleaning mechanism, several other components and design considerations are crucial for the efficient and effective operation of a baghouse. These elements ensure optimal airflow, proper dust removal, and overall system longevity.
The Hopper and Dust Discharge System
The hopper is a vital part of the baghouse, serving as the collection point for the dislodged dust. Typically located at the bottom of the baghouse, it is designed with sloping sides to guide the dust downwards into a discharge mechanism. This discharge system can take various forms, including rotary airlocks, screw conveyors, or dump gates, all designed to remove the collected dust from the baghouse without allowing significant air leakage. The efficient removal of dust from the hopper is critical to prevent re-entrainment into the airflow and to maintain optimal filtration performance.
Air-to-Cloth Ratio and Fan Selection
The air-to-cloth ratio is a fundamental design parameter for any baghouse. It represents the volume of air being processed divided by the total filter area of the bags. This ratio directly influences the cleaning frequency and the overall efficiency of the dust collector. A lower air-to-cloth ratio generally means less dust loading per unit of filter area, leading to longer filter life and less frequent cleaning. The selection of an appropriate fan or blower system is also critical. The fan must be capable of providing the necessary airflow and static pressure to overcome the resistance of the filter bags and ductwork, ensuring that the dust-laden air is effectively drawn into the baghouse and through the filtration system.
Material Selection and Bag Longevity
The materials used in the construction of the baghouse, as well as the filter bags themselves, are critical for its performance and longevity. The housing and internal components must be able to withstand the corrosive or abrasive nature of the dust and the operating environment. For example, in highly acidic or high-temperature environments, specialized alloys or coatings may be necessary. The selection of filter bag material, as discussed earlier, is paramount and is dictated by the operating temperature, the chemical properties of the dust, and the required filtration efficiency. Proper maintenance, including regular inspections and timely cleaning, also plays a significant role in maximizing the lifespan of both the filter bags and the entire baghouse system.
The Broader Impact of Baghouse Technology
Baghouses are more than just industrial dust collectors; they are essential tools in the ongoing effort to protect the environment and ensure worker safety. Their widespread adoption has significantly contributed to improving air quality in industrial areas and mitigating the health risks associated with airborne particulate matter.
Environmental Regulations and Compliance
Environmental regulations worldwide increasingly mandate stringent limits on industrial emissions. Baghouses play a crucial role in helping industries meet these regulatory requirements. By effectively capturing particulate matter, they prevent the release of pollutants that can contribute to smog, respiratory illnesses, and other environmental problems. Compliance with these regulations is not only a legal obligation but also a demonstration of a company’s commitment to environmental stewardship.
Worker Health and Safety
Exposure to airborne dust and fine particles can pose serious health risks to industrial workers, leading to respiratory diseases such as silicosis, asbestosis, and occupational asthma. Baghouses create a cleaner working environment by removing these hazardous particles from the air. This direct impact on worker health and safety is one of the most significant benefits of baghouse technology, contributing to a more productive and healthier workforce.
Advancements and Future Trends in Dust Collection
The field of dust collection, including baghouse technology, is continuously evolving. Ongoing research and development focus on improving filtration efficiency, reducing energy consumption, and enhancing the durability of filter materials. Innovations in smart sensors and control systems are leading to more sophisticated monitoring and automated cleaning processes, further optimizing performance and reducing operational costs. As industries continue to push the boundaries of production and as environmental concerns grow, the role of advanced baghouse technology will only become more critical in ensuring sustainable industrial practices.
