In the world of drone engineering and accessory manufacturing, the difference between a successful flight and a catastrophic mechanical failure often rests on the smallest components: the fasteners. While the casual observer sees carbon fiber frames, high-speed brushless motors, and sophisticated flight controllers, the veteran builder looks at the screws. Among the various sizes found in the toolkit of a drone technician, the #8 screw occupies a unique and vital position. Although the drone industry has largely shifted toward metric standards like M2 and M3 for micro-quads and racing drones, the #8 screw remains a staple in larger unmanned aerial vehicle (UAV) platforms, heavy-duty ground station equipment, and specialized mounting accessories.
Understanding what a #8 screw is, its mechanical properties, and its specific applications within the drone ecosystem is essential for anyone involved in the maintenance, customization, or deployment of professional-grade aerial technology.
Understanding the Anatomy and Specifications of a #8 Screw
The “#8” designation refers to a standard size within the Unified Thread Standard (UTS), which is the primary system used in the United States and Canada. Unlike metric screws, which are defined by their diameter in millimeters (e.g., an M3 screw is approximately 3mm in diameter), numbered screws follow a specific gauge system where the higher the number, the larger the diameter.
Size and Diameter Specifications

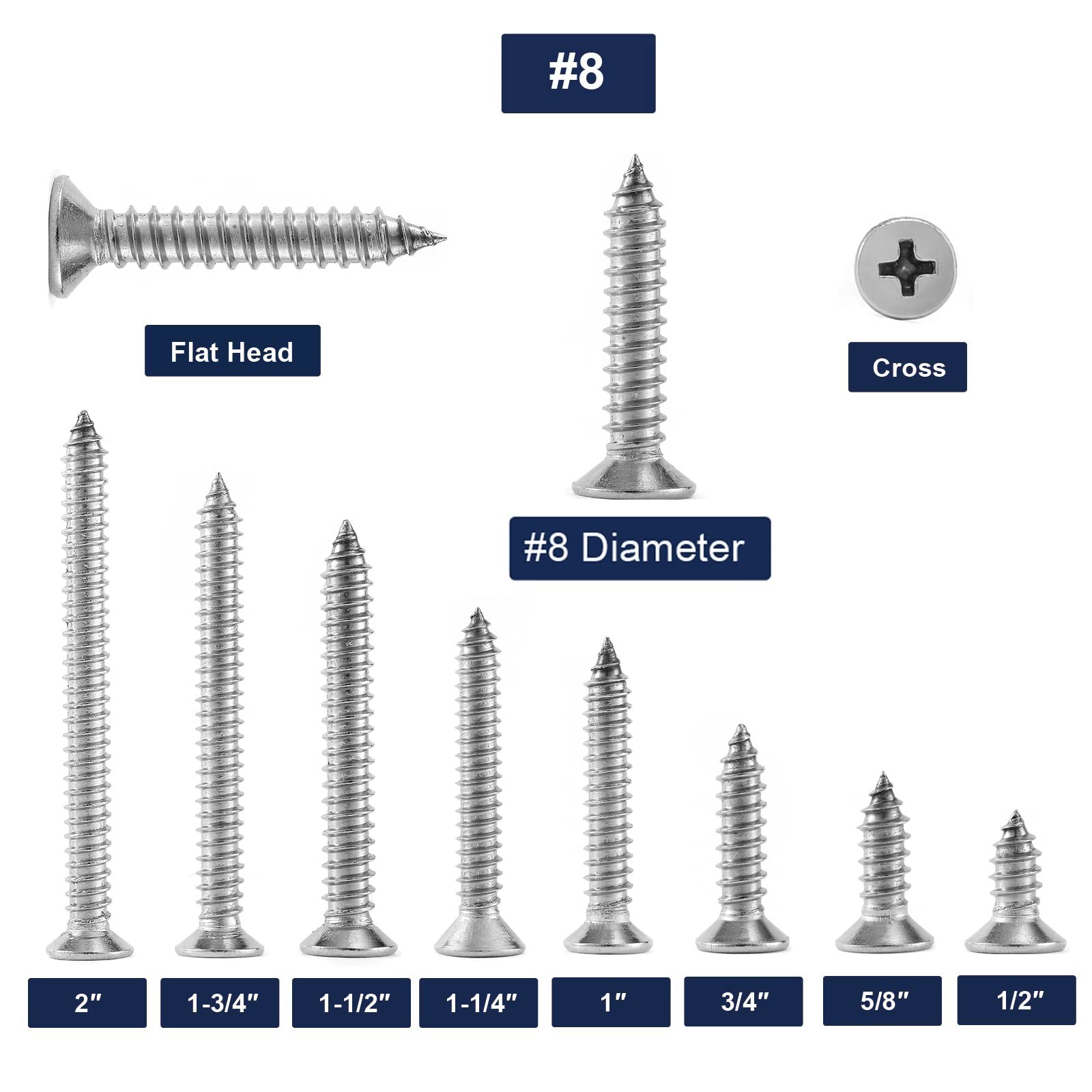

A #8 screw has a major diameter of 0.1640 inches, which translates to approximately 4.166 millimeters. In the hierarchy of fasteners, it sits comfortably between the #6 (0.138″) and the #10 (0.190″). In the context of drone accessories, this size is substantial. While an M3 screw is the “workhorse” of the 5-inch FPV drone world, the #8 screw is significantly beefier, providing the shear strength and tension required for larger components.
The length of a #8 screw is measured from the underside of the head to the tip, except for countersunk screws, where the measurement includes the head. For drone operators mounting external payloads or building custom transport cases, selecting the correct length is a matter of ensuring “thread engagement”—the amount of the screw that is actually threaded into the receiving material.
Thread Pitch and Variations (UNC vs. UNF)
Not all #8 screws are created equal. They are divided into two primary thread categories: Unified National Coarse (UNC) and Unified National Fine (UNF).
- #8-32 (Coarse): This is the most common variety. The “32” indicates 32 threads per inch. Coarse threads are preferred for drone accessories made of softer materials like plastics, composites, or aluminum, as they are less likely to cross-thread and provide better “bite” in tapped holes.
- #8-36 (Fine): With 36 threads per inch, these provide a higher level of adjustment precision and greater tensile strength. They are often found in high-vibration environments where a finer thread pitch helps prevent the screw from backing out under the rhythmic frequencies generated by large-diameter propellers.
The Role of #8 Screws in the Drone Ecosystem
As drones scale up from recreational toys to industrial tools, the hardware must scale accordingly. While you won’t find a #8 screw on a tiny-whoop or a standard Mavic-class drone, they are ubiquitous in the “Accessories and Infrastructure” side of the industry.
Heavy-Duty Frame Assembly and Landing Gear
For heavy-lift octocopters and hexacopters used in cinematography or agricultural spraying, the structural loads are immense. These drones often carry payloads exceeding 20 or 30 pounds. In these scenarios, the thin walls of M3 fasteners may not provide a sufficient safety margin. #8 screws are frequently used to secure retractable landing gear assemblies to the main chassis. The landing gear must withstand not only the weight of the drone but also the dynamic forces of a hard landing. The thicker shank of a #8 screw offers superior resistance to shearing forces that could otherwise snap smaller fasteners.
Mounting Payload Brackets and Gimbals
Professional drone accessories—such as LiDAR scanners, multispectral sensors, or high-end cinema gimbals—require rock-solid mounting solutions. Many quick-release plates and “cheese plates” used in aerial filmmaking are drilled and tapped for #8-32 hardware. Because these sensors often represent an investment of tens of thousands of dollars, the mechanical connection between the drone’s accessory rail and the sensor must be fail-proof. The #8 screw provides the necessary clamping force to ensure that expensive imaging equipment does not shift during high-G maneuvers or aggressive flight paths.
Ground Support and Transport Gear
Beyond the aircraft itself, the #8 screw is a hero of the “Ground Station.” Custom-built drone controllers, long-range antenna trackers, and ruggedized transport cases rely heavily on this fastener size. If you are building a custom “flight case” that integrates monitors, batteries, and chargers into a Pelican-style hard shell, you will likely reach for #8-32 screws to mount your internal aluminum panels. They are large enough to be handled easily in the field but small enough to keep the overall weight of the accessory kit manageable.
Material Matters: Selecting the Right #8 Screw for Aerial Applications
In aviation, weight is the enemy, and environmental exposure is a constant threat. Choosing a #8 screw isn’t just about size; it’s about the metallurgy.
Stainless Steel vs. Zinc-Plated
Most hardware store #8 screws are made of zinc-plated steel. While affordable, they are prone to corrosion, especially for drones operating in coastal environments or high-humidity agricultural settings. Professional drone builders prefer 304 or 316-grade stainless steel. Stainless steel #8 screws offer excellent corrosion resistance and professional aesthetics, ensuring that the accessory mounts don’t rust and seize over time.
Titanium and Lightweight Alloys
For high-performance applications where every gram counts, titanium #8 screws are the gold standard. Titanium offers the strength of steel at roughly half the weight. In a large-scale drone assembly where dozens of #8 screws might be used, switching to titanium can shave several ounces off the total take-off weight (TOW), directly translating to increased flight time or battery efficiency.
Nylon and Composite Screws
In some specific drone accessories, such as GPS mounts or compass housing, magnetic interference must be avoided. A steel #8 screw can interfere with the drone’s internal magnetometer, leading to “toilet bowling” or flyaways. In these cases, nylon #8 screws are utilized. They provide sufficient holding power for lightweight electronic components while remaining completely transparent to the drone’s sensitive navigation sensors.
Installation and Maintenance Best Practices
The integrity of a drone accessory is only as good as its installation. Because #8 screws are often used in load-bearing or high-vibration areas, following a strict maintenance protocol is mandatory.
Tools for #8 Fasteners
The most common drive types for #8 screws are Phillips and Hex (Allen). In the drone world, Hex drive (specifically a 9/64″ or 1/8″ hex key, depending on the head type) is vastly superior to Phillips. Phillips heads are designed to “cam out” to prevent over-tightening, which often leads to stripped heads in field conditions. A high-quality hex-drive #8 screw allows the technician to apply precise torque without damaging the fastener.
Managing Vibration and Loctite Application
Drones are essentially “vibration machines.” The high-frequency oscillations from the motors can loosen even the most tightly installed screws over time. When installing #8 screws on a drone frame or accessory mount, the use of a thread-locking compound is non-negotiable.
- Blue Loctite (242/243): This is the industry standard. It provides a medium-strength bond that prevents the #8 screw from vibrating loose but still allows for removal with hand tools for maintenance.
- Red Loctite: This should generally be avoided in drone accessories unless the connection is intended to be permanent, as it requires heat for removal and can damage carbon fiber or plastic components during the extraction process.
Torque Settings and Structural Integrity
Over-tightening a #8 screw into a carbon fiber plate can lead to delamination of the fibers, while under-tightening can lead to accessory failure. When working with professional-grade drone kits, technicians should refer to torque specifications. For a #8-32 stainless steel screw, a typical torque value might range between 18 to 20 inch-pounds. Using a calibrated torque driver ensures that the clamping force is uniform across all mounting points, which is critical for maintaining the balance and structural harmonics of the aircraft.
Why #8 Persists in a Metric World
One might wonder why the drone industry hasn’t completely abandoned the #8 screw in favor of the M4 metric equivalent. The answer lies in legacy standards and the broader aerospace ecosystem. Many of the components integrated into industrial drones—such as specialized servos, heavy-duty clamps, and American-made sensor housings—were designed around the Unified Thread Standard.
Furthermore, the #8-32 screw offers a specific “sweet spot” in terms of thread engagement and shear area that is slightly different from its metric cousins. For many designers of drone accessories, the availability and familiarity of #8 hardware in the North American market make it a practical choice for rapid prototyping and local manufacturing.
In conclusion, while the #8 screw might seem like a mundane piece of hardware, it is a critical link in the chain of drone reliability. Whether it is securing a thermal camera for a search-and-rescue mission or fastening a heavy-duty battery tray for a long-endurance flight, the #8 screw provides the strength and versatility that modern drone accessories demand. Understanding its specs, choosing the right materials, and installing it with precision are the marks of a professional drone technician.
