What Size Screw for a License Plate?

Navigating the world of vehicle customization and maintenance often involves those seemingly minor details that, in fact, play a crucial role in both aesthetics and functionality. Among these, the humble license plate, a mandatory identifier for any road-legal vehicle, presents a common question for enthusiasts and everyday owners alike: what size screw is appropriate for mounting it? While seemingly straightforward, selecting the correct screw size for your license plate is essential to prevent damage to the plate, the mounting surface, and to ensure a secure fit that withstands the rigors of driving. This comprehensive guide will delve into the common screw sizes, materials, and considerations necessary for a proper license plate installation.

Table of Contents

Understanding License Plate Screw Standards

The vast majority of vehicles in North America, and many internationally, adhere to a de facto standard for license plate mounting hardware. This standardization is driven by both convenience and safety regulations. License plates are typically designed to be affixed using screws that are neither too small to provide a secure hold nor too large to strip the mounting threads or damage the plate itself.

Common Screw Thread Sizes

The most prevalent screw thread size used for license plates in the United States and Canada is the 1/4-20 UNC (Unified National Coarse) thread. This designation breaks down as follows:

1/4: Indicates the nominal diameter of the screw shank is approximately 1/4 inch.
20: Represents the number of threads per inch. A coarser thread pitch (20 TPI in this case) is generally favored for applications where frequent removal and reinstallation might occur, and it offers good resistance to vibration loosening.
UNC: Stands for Unified National Coarse, signifying the thread standard.

While 1/4-20 is the overwhelmingly common size, it’s not entirely unheard of for some manufacturers or specific vehicle models to employ slight variations. However, for the vast majority of aftermarket license plate frames, license plate covers, and direct plate mounting, 1/4-20 will be the size you encounter.

Metric Equivalents and Considerations

For vehicles manufactured outside of North America, particularly those from Europe and Asia, metric fasteners are more common. The closest metric equivalent to a 1/4-20 UNC screw in terms of diameter and thread pitch is often an M6 x 1.0 screw.

M6: Denotes a metric screw with a nominal diameter of 6 millimeters.
1.0: Indicates a thread pitch of 1.0 millimeter.

It is crucial to note that while M6 is close in diameter to 1/4 inch (which is approximately 6.35 mm), the thread pitch is different. A 1/4-20 UNC screw has approximately 25.4 threads per inch, while an M6 x 1.0 screw has approximately 24 threads per inch. Attempting to force a UNC screw into a metric thread, or vice-versa, can cause significant damage to both the screw and the mounting point. Therefore, if you suspect your vehicle uses metric fasteners, it is always best to verify the exact thread size before purchasing any hardware.

Materials and Types of Screws

Beyond size, the material and type of screw are important considerations for ensuring longevity and proper function.

Screw Materials

License plate screws are typically made from materials that offer good corrosion resistance, especially given their exposure to the elements.

Stainless Steel: This is arguably the best choice for license plate screws. Stainless steel offers excellent resistance to rust and corrosion, making it ideal for outdoor applications. It is also strong and durable.
Zinc-Plated Steel: A more economical option, zinc-plated steel screws provide a decent level of corrosion resistance. The zinc coating acts as a sacrificial layer, protecting the underlying steel. However, over time, this coating can wear away, leading to rust, particularly in harsh environments.
Brass: While less common for standard license plate screws, brass can be used. It offers good corrosion resistance but is softer than steel and may not be as durable for high-vibration environments.

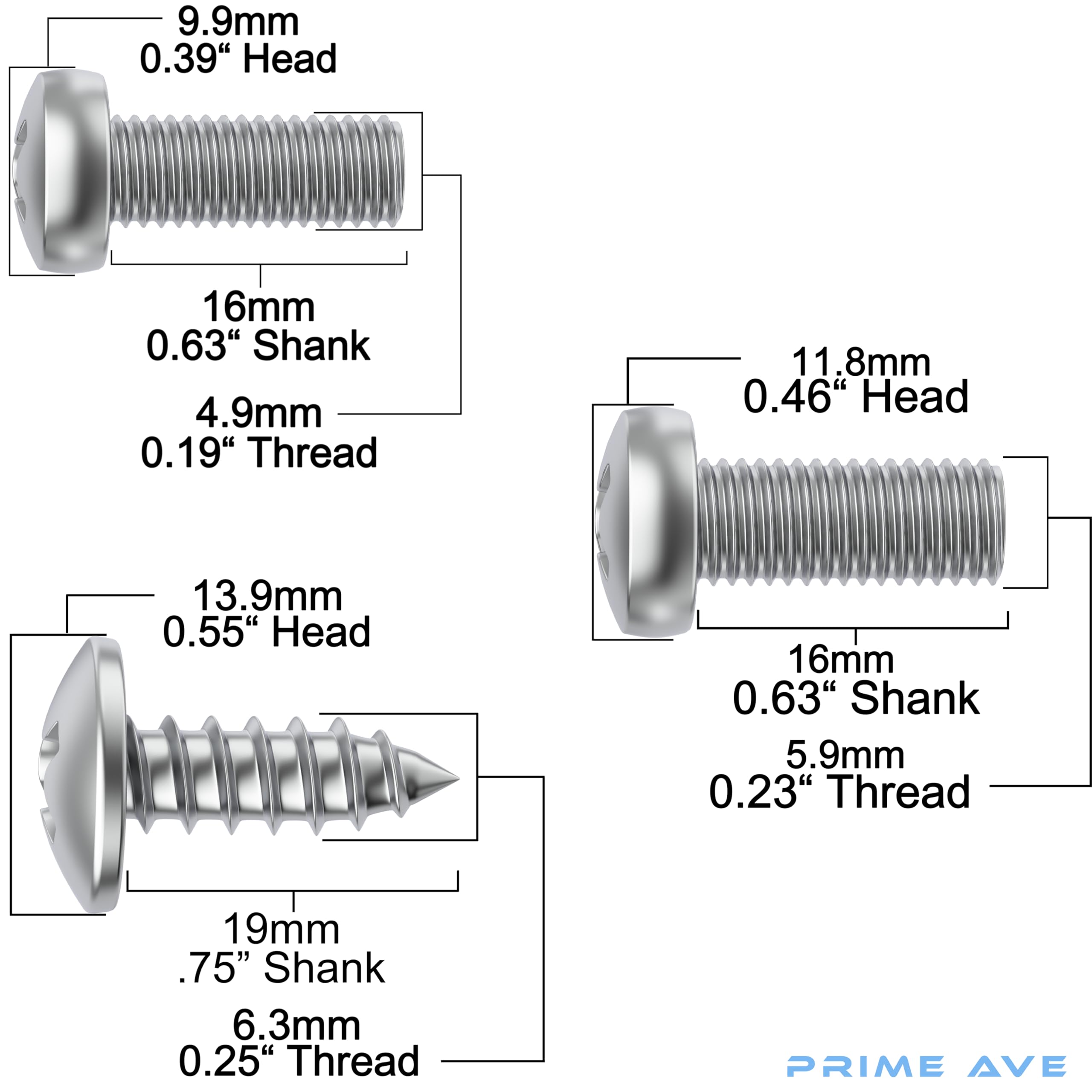

Screw Head Types

The head of the screw is what you interact with during installation and removal. Several head types are common for license plates:

Pan Head: A rounded, slightly domed head with short vertical sides. This is a very common and versatile head type.
Washer Head: These screws have a built-in washer under the head, which helps to distribute the clamping force over a larger area of the license plate and the mounting surface. This can be beneficial in preventing the plate from deforming or cracking.
Hex Head: Features a hexagonal recess for a socket wrench or wrench. These provide excellent torque capabilities for a secure fit.
Phillips Head: The classic cross-shaped recess. While common, they can be prone to cam-out (the driver slipping out of the recess) if too much force is applied, especially with lower-quality screws.
Torx Head (Star Drive): Offers superior grip and resistance to cam-out compared to Phillips heads. Increasingly popular for its security and ease of use.
Security Screws: These screws have unique drive types that require specialized tools for removal, deterring theft of the license plate. Examples include pin-in-Torx or spanner (snake-eye) heads.

Factors Influencing Screw Selection

While knowing the standard sizes is a great starting point, several other factors should influence your choice of license plate screws.

Vehicle Mounting Points

Most vehicles have pre-drilled holes in the bumper or rear fascia specifically for license plates. These holes typically have threaded inserts or are designed to accept sheet metal screws or bolts.

Threaded Inserts: If your vehicle has threaded inserts (often plastic or metal sleeves with internal threads), you will need screws with a matching thread size (e.g., 1/4-20 UNC or M6 x 1.0). The length of the screw should be sufficient to engage fully with the insert without bottoming out.
Sheet Metal or Plastic: Some vehicles may have holes that allow a self-tapping screw or a bolt with a nut on the back. In such cases, the screw diameter will be determined by the hole size, and the thread type will be designed to bite into the material.
License Plate Frames and Brackets: Many aftermarket license plate frames, security brackets, or decorative covers come with their own mounting hardware. These kits often include the necessary screws or bolts. It’s crucial to use the hardware provided with the frame or bracket, as it’s designed to work with that specific accessory.

License Plate Thickness and Material

Standard license plates are typically made of thin aluminum or steel. However, some novelty or specialty plates might be thicker or made of different materials. The length of your screw needs to accommodate the thickness of the plate itself, plus any frame or mounting bracket, and still have enough thread engagement with the vehicle’s mounting point.

Environmental Conditions

The climate in which you live will significantly impact the choice of screw material.

Coastal or Humid Regions: If you live near the coast or in an area with high humidity, aggressive road salt application in winter, or frequent rain, stainless steel screws are highly recommended to prevent premature corrosion and seizing.
Dry Climates: In drier, less corrosive environments, zinc-plated steel might suffice, though stainless steel still offers superior longevity.

Aesthetics and Security

The appearance of your license plate can be enhanced or detracted from by the mounting hardware.

Decorative Caps: Many license plate screw kits include decorative plastic or chrome caps that fit over the screw heads, providing a cleaner and more finished look.
Security Features: For those concerned about license plate theft, security screws are a worthwhile investment. These require specialized tools to remove, making it much more difficult for someone to steal your plate.

Common Installation Scenarios and Solutions

Let’s consider some typical situations and how to address them.

Scenario 1: Replacing Lost or Damaged Screws

If you’ve lost one or both of your license plate screws, or if they’ve become corroded and difficult to remove, you’ll need replacements.

Determine the Thread Size: The easiest way is to check the existing screw (if you have one) or look for information in your vehicle’s owner’s manual. If unsure, you can use a thread gauge or try a few common screw sizes (1/4-20 UNC is the most likely).
Consider Material: For longevity, opt for stainless steel.
Select Head Type: Choose a head type that matches your existing setup or one that offers improved functionality (e.g., Torx for better grip).
Length is Key: Measure the thickness of your license plate and any frame. Add about 1/4 to 1/2 inch to this measurement to ensure sufficient thread engagement with the mounting point. It’s better to have a screw that’s slightly too long and can be accommodated than one that’s too short and won’t secure the plate.

Scenario 2: Installing an Aftermarket License Plate Frame

Aftermarket frames often come with their own screws, but sometimes they are too short or too long, or made of inferior materials.

Assess Provided Hardware: Check the length and material of the screws included with the frame.
Test Fit: Before fully tightening, test fit the frame with the provided screws. Ensure they engage properly with the vehicle’s mounting points.
Replace if Necessary: If the provided screws are inadequate (too short, too long, poor material), purchase new ones that match the thread size of your vehicle’s mounting points and are appropriate for the combined thickness of the plate and frame. Again, stainless steel is a good choice.

Scenario 3: Dealing with Stripped or Damaged Mounting Holes

This is a more complex issue, but not uncommon, especially on older vehicles or those with plastic mounting components.

For Threaded Inserts: If the threaded insert itself is stripped, you might be able to use a slightly larger diameter screw with the same thread pitch (if available) or a self-tapping screw that can cut new threads. Alternatively, you can replace the entire threaded insert if it’s a replaceable part.
For Direct Mounting Holes: If the hole in the bumper or fascia is damaged, you might need to use a larger diameter bolt and nut combination, provided there is space to accommodate the nut on the backside. Another option is to use a pop rivet or a specialized bumper repair kit.

Installation Best Practices

Once you’ve selected the correct screws, proper installation is crucial.

Clean the Mounting Area: Ensure the mounting surface and the license plate are clean and free of debris.
Align the Plate: Position the license plate (and frame, if applicable) correctly over the mounting holes.
Start Screws by Hand: Begin threading the screws by hand to ensure they are not cross-threaded. This is particularly important for the first few turns.
Tighten Gradually: Tighten the screws evenly, alternating between them if there are two. Do not overtighten. Overtightening can strip the threads in the mounting point, crack the license plate, or damage the mounting bracket. The goal is to secure the plate firmly without excessive pressure.
Use a Washer (if not built-in): If your screws don’t have a built-in washer and you’re concerned about pressure distribution or vibration, consider using a separate flat washer.
Apply Threadlocker (Optional but Recommended): For high-vibration environments, a small amount of blue threadlocker (medium strength) applied to the threads of the screw can help prevent them from loosening over time. Avoid red threadlocker, as it’s a permanent bond.

Conclusion

The seemingly simple act of attaching a license plate involves a thoughtful consideration of hardware. While the 1/4-20 UNC screw is the most common standard for license plate mounting in many regions, understanding metric equivalents, various material properties, and different head types will ensure a secure, durable, and aesthetically pleasing installation. By paying attention to these details, you can ensure your license plate remains firmly in place, protecting both your vehicle and your compliance with traffic regulations.
