In the sophisticated world of unmanned aerial vehicles (UAVs), the ability to achieve precise, controlled movement is what separates a high-performance aircraft from a simple toy. While the large brushless motors provide the lift and thrust necessary for flight, there is another component working tirelessly behind the scenes to manage direction, stabilization, and utility: the servo.
Often referred to as the “muscles” of a drone, a servo—or servomotor—is an electromechanical device that provides precise control of angular or linear position, velocity, and acceleration. Unlike a standard motor that simply spins when power is applied, a servo is a closed-loop system that uses feedback to maintain a specific position. For drone enthusiasts, builders, and professionals, understanding the nuances of servo technology is essential for optimizing flight characteristics and hardware reliability.
Understanding the Fundamentals: What Exactly is a Servo?
At its core, a servo is not a single part but a sophisticated assembly of several components working in harmony. To understand what a servo is in the context of drone accessories, one must look at the internal feedback loop that defines its operation.
The Closed-Loop System
The defining characteristic of a servo is its “closed-loop” nature. In an open-loop system, a command is sent, and the device reacts without confirming if the goal was reached. In a servo, a sensor (usually a potentiometer or an encoder) constantly monitors the position of the output shaft. This position is fed back to the internal control circuit. If there is a discrepancy between the commanded position and the actual position, the controller sends an error signal to the motor to move until the two values match. This allows for the extreme precision required to tilt a camera gimbal by a fraction of a degree or adjust a flap on a fixed-wing drone.

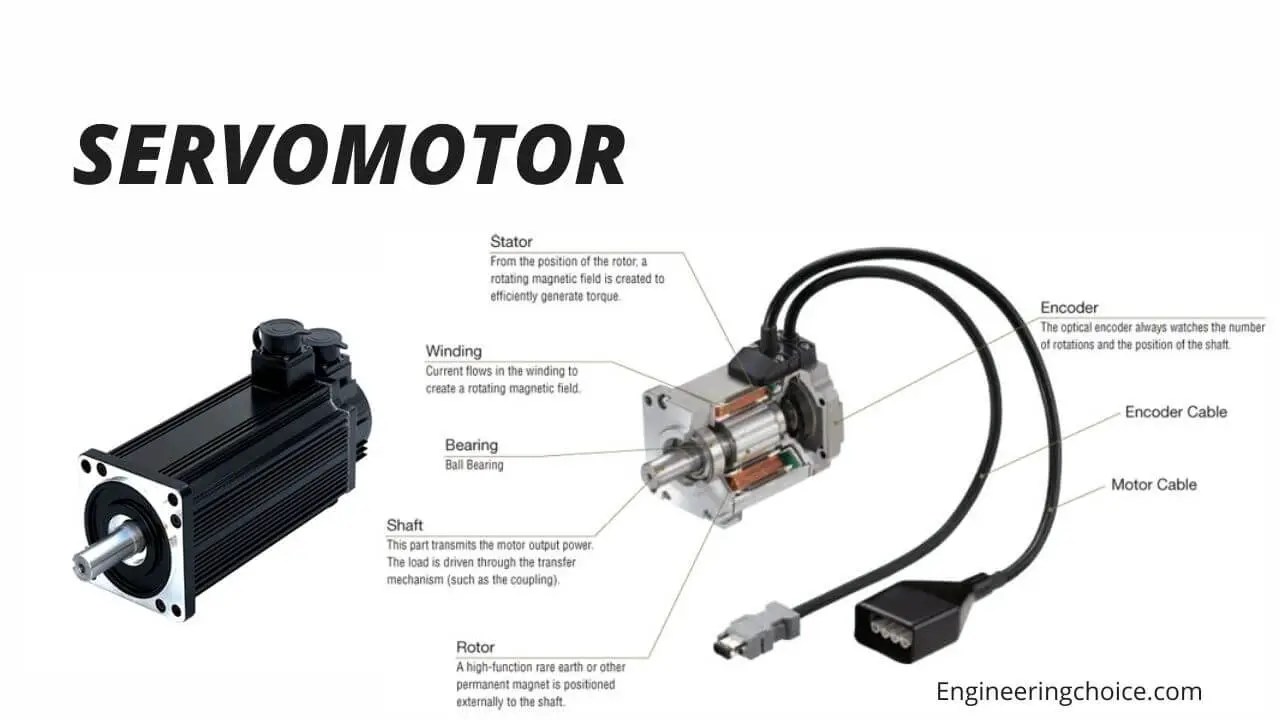

Internal Components of a Servomotor
Every drone servo contains four primary elements:
- DC Motor: The powerhouse that provides the mechanical energy. These are typically small but high-torque motors designed for rapid starts and stops.
- Gear Train: A series of gears that reduce the high speed of the internal motor to a lower, more manageable speed while significantly increasing the torque (pulling power).
- Potentiometer: A variable resistor linked to the output shaft that acts as the position sensor. It tells the control board exactly where the “arm” of the servo is at any given millisecond.
- Control Circuit: The brain of the servo that interprets Pulse Width Modulation (PWM) signals from the drone’s flight controller or receiver and manages the motor’s movement based on feedback.
Types of Servos in the Drone Ecosystem
Not all servos are created equal. Depending on whether you are building a micro FPV drone, a cinematic hexacopter, or a long-range fixed-wing UAV, the type of servo required will vary based on speed, durability, and signal processing.
Analog vs. Digital Servos
The primary difference between analog and digital servos lies in how they process information and control the motor.
- Analog Servos: These receive a signal (usually at 50Hz) and send power pulses to the motor at that same frequency. Between pulses, the motor is technically “off,” which can lead to a slight lag in response and a lack of holding power if external forces try to move the servo arm.
- Digital Servos: These utilize a high-frequency microprocessor to send power pulses to the internal motor at much higher rates (often 300Hz or more). This results in a faster response time, smoother movement, and significantly higher “holding torque.” For drone pilots, digital servos provide a “locked-in” feel that is essential for high-speed maneuvers or stabilizing heavy cameras.
Metal Gear vs. Plastic Gear
The gear train’s material dictates the servo’s lifespan and resilience.
- Plastic/Nylon Gears: These are lightweight, inexpensive, and operate very smoothly. They are ideal for micro drones or internal mechanisms where weight is the primary concern. However, they are prone to “stripping” (breaking teeth) during a crash or under high stress.
- Metal Gears (Brass, Aluminum, Titanium): These are the gold standard for drone accessories. Titanium and hardened steel gears are virtually indestructible in normal flight conditions. While they are slightly heavier and may develop a small amount of “slop” or play over time (mechanical backlash), their ability to withstand the g-forces of aerial acrobatics makes them the preferred choice for professional UAVs.
Brushless vs. Coreless Motors
The type of motor inside the servo housing also impacts performance.
- Coreless Motors: By removing the heavy iron core from the motor’s rotor, the weight is reduced, allowing the motor to accelerate and decelerate much faster than a standard motor.
- Brushless Motors: Found in high-end drone servos, brushless motors offer the best longevity. Because there are no brushes to wear out, these servos run cooler, are more efficient, and provide incredible power-to-weight ratios, making them perfect for industrial drone applications.
Key Performance Metrics for Drone Operators
When selecting a servo from a catalog of drone accessories, technical specifications can be overwhelming. Understanding how these metrics translate to flight performance is vital for making an informed purchase.
Torque and Speed Ratings
Torque is measured in kilogram-centimeters (kg-cm) or ounce-inches (oz-in). It represents how much weight the servo can pull at a specific distance from its center. For a drone’s landing gear or a large aileron on a fixed-wing craft, high torque is non-negotiable.
Speed, on the other hand, is usually measured as the time it takes for the servo to rotate 60 degrees (e.g., 0.12 sec/60°). In racing drones or FPV setups, speed is often prioritized over torque to ensure the aircraft reacts instantly to pilot inputs.
Voltage Compatibility
Most servos are designed to run on 4.8V to 6.0V, typically supplied by a Battery Eliminator Circuit (BEC). However, “High Voltage” (HV) servos are becoming increasingly popular in the drone world. HV servos can be powered directly by a 2S LiPo battery (7.4V to 8.4V), which allows them to produce significantly more torque and speed without the need for a heavy external voltage regulator.
Resolution and Deadband
In the context of drone flight technology, resolution refers to the smallest increment of movement the servo can make. Higher resolution results in smoother flight paths and more precise gimbal leveling. “Deadband” refers to the range of signal change that must occur before the servo starts to move. A narrow deadband means the servo is highly sensitive and responsive, whereas a wide deadband can make a drone feel “mushy” or unresponsive.
Practical Applications: Where Servos Excel in UAVs
While multirotors primarily use electronic speed controllers (ESCs) to change direction, servos remain indispensable for specific drone configurations and utility tasks.
Control Surfaces for Fixed-Wing Aircraft
In the world of fixed-wing drones (UAV planes), servos are the primary means of navigation. They actuate the ailerons, elevators, and rudders. Because these surfaces are constantly fighting wind resistance, the servos must be both fast and strong. A failure in a single servo on a fixed-wing craft almost always results in a catastrophic crash, highlighting the importance of choosing high-quality components.
Gimbal Stabilization and Payload Release
For aerial photographers, servos are often found in gimbal systems. While many modern gimbals use brushless motors for 3-axis stabilization, servos are still frequently used for “pitch” control or for simpler, 2-axis hobbyist stabilizers. Additionally, servos are the standard mechanism for “payload release” systems. Whether it’s a search-and-rescue drone dropping a life vest or a delivery drone releasing a package, a high-torque servo is the mechanical “latch” that makes it possible.
Landing Gear Retraction Systems
To keep the drone’s frame out of the camera’s field of view, many professional drones utilize retractable landing gear. Specialized “retract servos” are used here. Unlike standard servos that move proportionally, retract servos are often “non-proportional,” meaning they move from one end-point to the other (up or down) with a single command, often featuring internal metal gears to hold the weight of the drone while it is on the ground.
Maintenance and Troubleshooting for Longevity
To ensure the safety of an expensive UAV, regular maintenance of the servo systems is required. Because they are mechanical devices, they are subject to wear and tear that purely electronic components are not.
Jittering and Signal Interference
If you notice a servo “jittering” or moving erratically while the drone is stationary, it could be a sign of signal interference or a failing potentiometer. Ensure that servo leads are kept away from high-current power wires (like those going to the main flight motors) to prevent electromagnetic interference. If the jittering persists, the internal potentiometer may be dirty or worn, indicating that the servo needs replacement.
Physical Wear and Gear Stripping
After any hard landing or minor crash, it is imperative to check the servos. Even if the drone looks fine, a single chipped tooth in a servo’s gear train can cause the unit to jam mid-flight. Pilots should manually move the servo arm (with the power off) to feel for any “grittiness” or resistance. In many high-end servos, the gear sets are replaceable, allowing you to rebuild the accessory without having to buy an entirely new motor.
Centering and Sub-Trim
Over time, mechanical linkages can stretch or shift. Using the drone’s ground control station or transmitter software to adjust the “sub-trim” ensures that the servo’s neutral position corresponds exactly with the aircraft’s neutral control surface position. Proper centering prevents the motors from “fighting” a constant load, which reduces heat and extends the life of the internal circuitry.
By viewing the servo as a vital drone accessory rather than just a small plastic box, pilots can better appreciate the precision required for modern flight. Whether it is providing the agility for a racing wing or the stability for a thermal imaging camera, the servo remains the fundamental link between digital commands and physical action in the sky.
