What is PLA-CF?

The world of 3D printing materials is constantly evolving, offering hobbyists and professionals alike a wider array of options to bring their designs to life. Among these, composite filaments have gained significant traction due to their enhanced mechanical properties and versatility. PLA-CF, a prominent member of this category, stands out as a particularly interesting and widely adopted material.

Understanding PLA-CF: The Fusion of PLA and Carbon Fiber

PLA-CF is essentially a composite filament derived from Polylactic Acid (PLA) by incorporating chopped carbon fibers into its base polymer. This fusion isn’t merely for aesthetic appeal; it’s a deliberate engineering choice designed to leverage the strengths of both components.

Polylactic Acid (PLA): The Foundation

PLA itself is a biodegradable thermoplastic derived from renewable resources like corn starch or sugarcane. Its popularity in 3D printing stems from several key advantages:

• Ease of Printing: PLA generally requires lower printing temperatures and does not typically necessitate a heated print bed, making it accessible to a wide range of 3D printers and user skill levels.
• Low Warping: Compared to many other thermoplastics, PLA exhibits minimal warping during the cooling process, leading to more dimensionally accurate prints.
• Biodegradability: Its eco-friendly nature is a significant draw for environmentally conscious creators and industries.
• Good Detail and Surface Finish: PLA can produce prints with excellent surface detail and a smooth finish, suitable for visual prototypes and decorative items.

However, PLA is not without its limitations. It possesses a relatively low glass transition temperature (Tg), meaning it softens and deforms at moderately high temperatures. Its mechanical strength and stiffness, while adequate for many applications, can be insufficient for parts subjected to significant stress or strain.

Carbon Fiber: The Reinforcing Element

Carbon fiber is a material consisting of extremely thin strands of carbon atoms. These fibers are incredibly strong and stiff, boasting remarkable tensile strength and modulus. When incorporated into a polymer matrix like PLA, carbon fibers act as a reinforcement, significantly enhancing the composite’s properties.

The benefits of adding carbon fibers to PLA include:

• Increased Stiffness and Strength: The primary advantage of PLA-CF is its substantial increase in rigidity and tensile strength compared to standard PLA. This allows for the creation of stronger, more durable parts.
• Improved Dimensional Stability: The presence of carbon fibers helps to reduce shrinkage and improve the overall dimensional stability of prints, especially under thermal stress.
• Reduced Creep: Creep is the tendency of a material to deform permanently under sustained mechanical stress. Carbon fiber reinforcement mitigates this effect, making PLA-CF suitable for load-bearing applications.

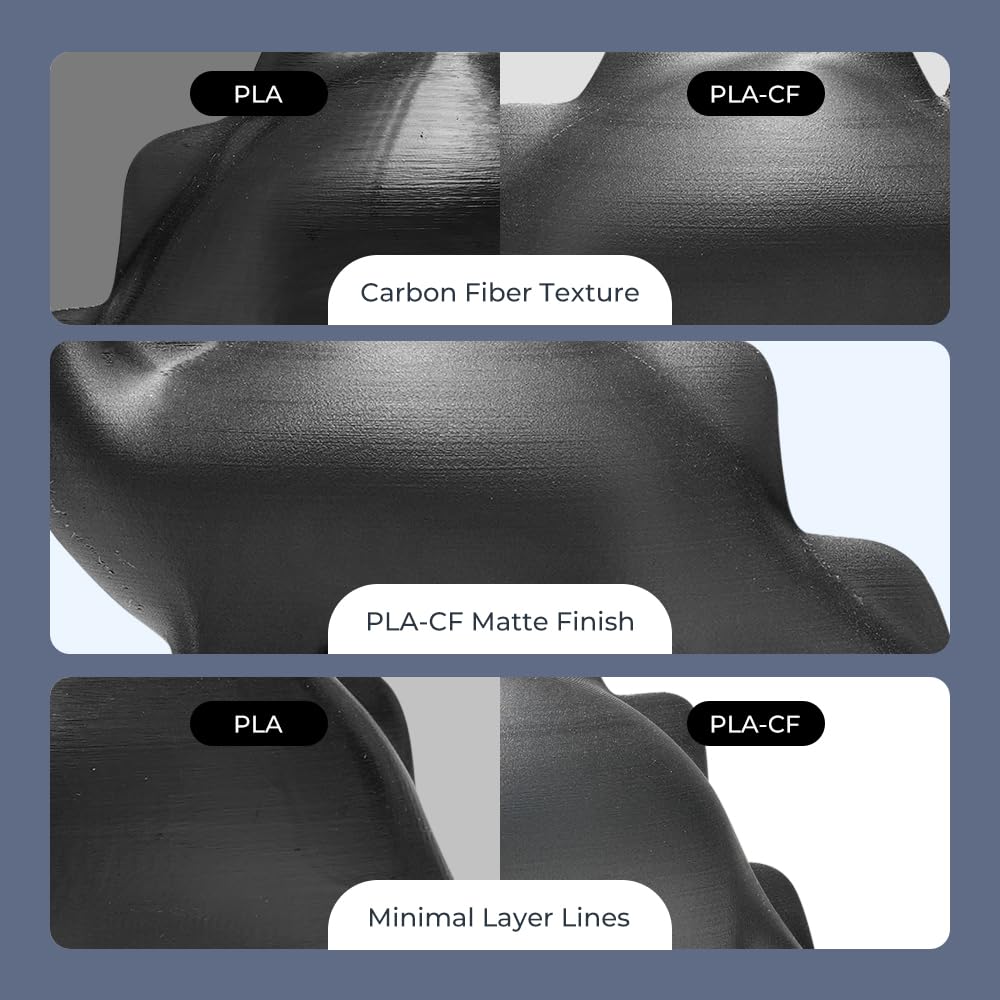

• Enhanced Surface Finish: The carbon fibers can create a unique, slightly textured, and matte surface finish, which is often aesthetically pleasing and can mask layer lines to some extent.
• Reduced Weight: While carbon fiber is strong, it is also very light. This contributes to a favorable strength-to-weight ratio in PLA-CF, making it ideal for applications where weight is a critical factor.

The Synergy: Why PLA + Carbon Fiber Works

The combination of PLA and carbon fiber creates a material that inherits the printability and biodegradability of PLA while gaining the superior mechanical performance typically associated with more advanced engineering plastics. This makes PLA-CF a compelling choice for a broad spectrum of applications where standard PLA falls short.

Properties and Performance of PLA-CF

The integration of carbon fibers profoundly impacts the material properties of PLA, transforming it from a general-purpose filament into a capable engineering material. Understanding these properties is crucial for effective application and design.

Mechanical Properties

• Tensile Strength: PLA-CF typically exhibits a tensile strength that is significantly higher than standard PLA, often by 30-50% or more. This means it can withstand greater pulling forces before breaking.
• Tensile Modulus (Stiffness): The stiffness, or resistance to deformation under load, is perhaps the most dramatic improvement in PLA-CF. It can be 2-3 times stiffer than standard PLA, making it ideal for parts that need to maintain their shape under stress.
• Impact Resistance: While stiffness increases, the impact resistance of PLA-CF can sometimes be slightly lower than pure PLA. This is because the brittle nature of the carbon fibers, in some formulations, can act as stress concentrators. However, advancements in fiber dispersion and lengths are continuously improving this aspect.
• Flexural Strength and Modulus: Similar to tensile properties, the ability of PLA-CF to resist bending forces is substantially enhanced.

Thermal Properties

• Heat Deflection Temperature (HDT): The HDT, which indicates the temperature at which a material begins to deform under a specified load, is generally improved in PLA-CF compared to standard PLA. This allows prints to maintain their structural integrity at slightly higher operating temperatures. However, it is still important to note that PLA-CF does not possess the high-temperature resistance of materials like ABS or PETG.
• Glass Transition Temperature (Tg): The Tg of PLA-CF is also slightly elevated due to the presence of the carbon fibers, contributing to its improved thermal stability.

Printing Considerations

While PLA-CF offers many advantages, its composite nature introduces specific printing requirements and considerations:

• Abrasiveness: The carbon fibers are abrasive, meaning they can wear down standard brass or aluminum printer nozzles over time. It is highly recommended to use hardened steel nozzles or other abrasion-resistant materials when printing with PLA-CF to prevent premature wear and tear on your extruder.
• Nozzle Size: For optimal print quality and to prevent clogs, a larger nozzle diameter (e.g., 0.4mm or larger) is often preferred for PLA-CF, especially when using higher fiber concentrations.
• Printing Temperatures: While the base PLA dictates the general temperature range, PLA-CF may require slightly higher printing temperatures than standard PLA to ensure proper melting and adhesion between the polymer and the carbon fibers. Filament manufacturers typically provide recommended temperature ranges.
• Bed Adhesion: Similar to standard PLA, good bed adhesion is crucial. Using a build surface like glass, PEI, or a textured sheet with appropriate adhesion aids (e.g., glue stick, hairspray) is recommended.
• Retraction Settings: Fine-tuning retraction settings can help to minimize stringing, which can be a minor issue with composite filaments.
• Cooling: While PLA benefits from cooling to prevent drooping, over-cooling PLA-CF can sometimes lead to reduced layer adhesion due to the rapid solidification of the composite. Experimentation with fan speeds is often necessary.

Applications of PLA-CF

The enhanced properties of PLA-CF make it suitable for a wide array of applications that extend beyond the typical uses of standard PLA. Its blend of strength, stiffness, and printability positions it as a go-to material for demanding projects.

Functional Prototypes and End-Use Parts

One of the most significant advantages of PLA-CF lies in its ability to produce functional prototypes that can withstand real-world stresses. This includes parts for:

• Mechanical Assemblies: Gears, brackets, fixtures, and housings that require rigidity and durability.
• Tooling and Jigs: Custom tools, jigs, and fixtures used in manufacturing or crafting processes where strength and precision are paramount.
• Enclosures: Robust enclosures for electronics, sensors, or small machinery.
• Robotics Components: Structural elements, mounts, and arm components for hobbyist and educational robots.

Drone and RC Components

The high strength-to-weight ratio of PLA-CF is particularly beneficial in the world of unmanned aerial vehicles (UAVs) and radio-controlled (RC) models. This includes:

• Drone Frames: Lightweight yet stiff drone frames can improve flight performance and maneuverability.
• Propeller Mounts: Components that require high rigidity to prevent vibrations.
• RC Car Chassis and Parts: Parts for RC cars and other vehicles where durability and a good balance of strength and weight are essential.
• Camera Mounts: Stable and vibration-dampening mounts for cameras.

Industrial and Engineering Use Cases

Beyond hobbyist applications, PLA-CF is finding its way into more professional and industrial settings:

• Concept Models: Creating highly detailed and robust concept models that can be handled and tested.
• Short-Run Production Parts: For low-volume production runs where the cost and lead time of traditional manufacturing methods are prohibitive.
• Educational Tools: Demonstrating engineering principles through the creation of strong and functional models.

Aesthetic Applications

While primarily chosen for its performance, the unique matte, slightly textured finish of PLA-CF can also be a desirable aesthetic feature for:

• Decorative Objects: Items where a premium, sophisticated look is desired.
• Architectural Models: Creating detailed and durable architectural representations.
• Artistic Creations: Sculptures and other art pieces requiring structural integrity.

Choosing the Right PLA-CF Filament

The market offers a variety of PLA-CF filaments, and the specific characteristics can vary between manufacturers. To achieve optimal results, it’s important to consider these factors when selecting a filament:

• Carbon Fiber Percentage: The amount of carbon fiber added to the PLA matrix is a critical factor. Common percentages range from 5% to 20% by weight. Higher percentages generally lead to increased stiffness and strength but can also increase abrasiveness and potentially affect printability.
• Fiber Length and Dispersion: The length and how evenly the carbon fibers are distributed within the PLA polymer also play a significant role in the final properties. Well-dispersed, longer fibers tend to provide better reinforcement.
• Manufacturer Reputation and Quality Control: Opting for filaments from reputable manufacturers with established quality control processes can ensure consistency in material properties and fewer printing issues.
• Specific Additives: Some manufacturers may include additional additives to improve specific properties like impact resistance or flow characteristics.

Advanced Considerations

• Annealing: For applications requiring maximum stiffness and thermal resistance, annealing PLA-CF prints (reheating them to a temperature below their Tg but above room temperature) can further enhance their mechanical properties. This process requires careful control of temperature and time.
• Post-Processing: While PLA-CF prints often have an attractive finish directly off the printer, they can also be sanded, painted, or otherwise post-processed to achieve desired aesthetics. However, sanding carbon fiber composites requires appropriate safety measures due to potential dust.

In conclusion, PLA-CF represents a significant advancement in accessible 3D printing materials. By intelligently combining the ease of printing of PLA with the formidable strength and stiffness of carbon fiber, it unlocks a new realm of possibilities for creators, engineers, and hobbyists seeking to produce durable, functional, and high-performance parts.
