The Iron Dome is a sophisticated, mobile all-weather air defense system developed by Rafael Advanced Defense Systems and Israel Aerospace Industries. Its primary purpose is to intercept and destroy short-range rockets, artillery shells, and mortars fired from distances of up to 70 kilometers. Developed in response to repeated rocket attacks on Israeli civilians, the Iron Dome has become a cornerstone of Israel’s national security strategy, credited with saving countless lives and mitigating the impact of hostile fire. Its effectiveness lies in a rapid detection, tracking, and interception cycle, relying on advanced radar, sophisticated targeting software, and highly maneuverable interceptor missiles.

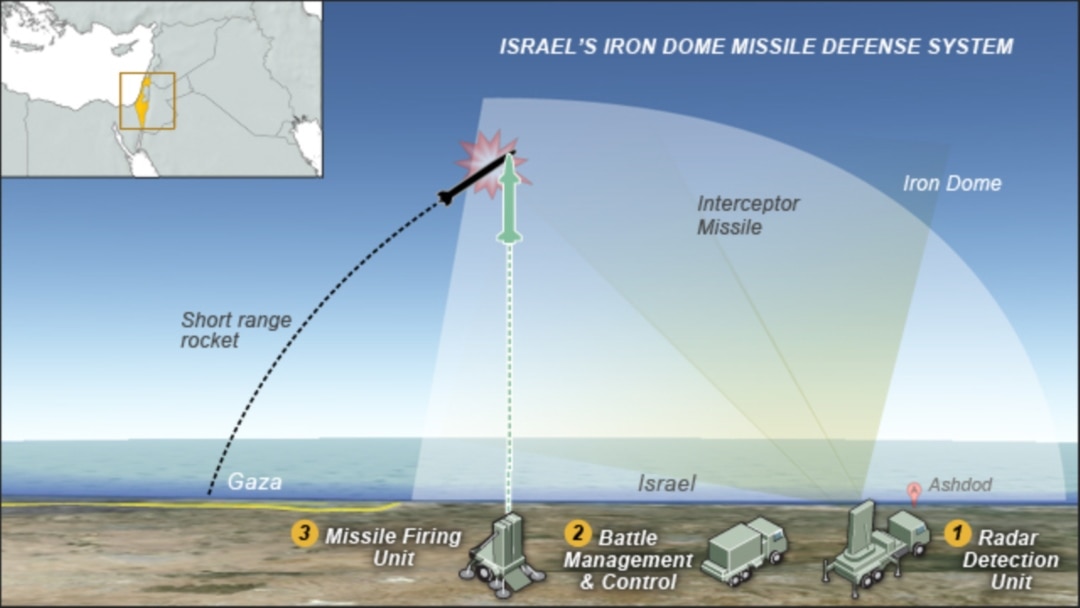

The Core Components: Detection, Tracking, and Engagement
The Iron Dome is not a single, monolithic entity but rather a network of interconnected components, each playing a critical role in its impressive defensive capabilities. Understanding these individual elements is key to appreciating the system’s overall efficacy. The system’s rapid reaction time and precision are a testament to the seamless integration of these specialized units.
Radar Systems: The Eyes of the Dome
At the heart of the Iron Dome’s detection capability is its advanced phased-array radar system. These radars are designed to scan the skies for incoming projectiles with exceptional speed and accuracy. Unlike traditional radar, phased-array technology allows for electronic beam steering, meaning the radar dish itself doesn’t need to physically move to track multiple targets simultaneously.
Target Acquisition and Classification
When a potential threat is detected, the radar system immediately begins to acquire and classify it. This involves analyzing the trajectory, velocity, and size of the incoming object. The system is programmed to differentiate between various types of projectiles, such as rockets, mortars, and even aircraft, ensuring that only genuine threats trigger an interception response. This crucial step prevents unnecessary engagements and conserves valuable interceptor missiles.
Trajectory Prediction
Once a target is classified as hostile, the radar data is fed into sophisticated algorithms that predict the projectile’s trajectory and pinpoint its predicted impact point. This prediction is vital for determining whether an interception is necessary and, if so, where the interceptor missile should be directed for a successful neutralization. The accuracy of this prediction is paramount to the system’s success.
Command and Control Center: The Brains of the Operation
The data gathered by the radar systems is then relayed to the Iron Dome’s command and control (C2) center. This is where the “brains” of the operation reside, analyzing the incoming threat information and making split-second decisions about whether to launch an interceptor. The C2 center is a highly sophisticated hub that integrates data from multiple sources to provide a comprehensive operational picture.
Decision-Making Algorithms
The C2 center employs complex algorithms that consider various factors, including the predicted impact point, the potential for civilian casualties, and the urgency of the threat. This allows the system to prioritize targets and make optimal decisions regarding interception. The algorithms are designed to be highly adaptable, factoring in real-time changes in the threat environment.
Interceptor Launch Authorization
Based on the threat assessment, the C2 center is responsible for authorizing the launch of an interceptor missile. This authorization is a rapid process, often taking mere seconds from detection to launch. The system’s ability to make swift and accurate decisions is a direct result of its advanced computational power and intelligent software.
Tamir Interceptor Missiles: The Fists of the Dome
The Tamir is the specialized interceptor missile developed for the Iron Dome system. These missiles are designed to be highly agile and capable of engaging fast-moving targets at close range. Their precision guidance system ensures a high probability of a direct hit, which is crucial for neutralizing incoming threats effectively.
Guidance Systems
The Tamir missile utilizes a multi-stage guidance system. Initially, it is guided by data from the Iron Dome’s radar and C2 center. As it approaches the target, its own seeker system can further refine its course for precise engagement. This combination of external and internal guidance enhances its accuracy significantly, even against erratic trajectories.
Warhead Design
The Tamir’s warhead is designed to detonate upon proximity to the incoming projectile, creating a blast and fragmentation effect that destroys the threat. The intelligent fuze system ensures detonation at the optimal point, maximizing the destructive impact and minimizing the risk of shrapnel reaching populated areas.
Operational Deployment and Effectiveness
The Iron Dome’s deployment strategy and its proven track record highlight its significant contribution to Israel’s defense. Its mobility and rapid deployment capabilities allow it to respond effectively to evolving threats across various regions.
Mobile Launchers: Strategic Agility
The Iron Dome system is mounted on mobile platforms, allowing for quick relocation to different areas of operation. This mobility is crucial for adapting to changing threat patterns and ensuring continuous coverage of vulnerable populations. The launchers are designed to be rugged and capable of operating in diverse environmental conditions.
Rapid Deployment
The system can be deployed and made operational within a matter of hours, enabling a rapid response to emerging threats. This agility is a key advantage, allowing the military to position the Iron Dome where it is most needed, thereby maximizing its protective coverage.
Area Coverage
Each Iron Dome battery is capable of defending a significant area, typically around 150 square kilometers. Multiple batteries can be networked together to provide a layered defense across wider regions, creating a comprehensive shield against short-range rocket fire.
Success Rate and Impact
The Iron Dome has demonstrated an exceptionally high success rate in intercepting incoming projectiles. While exact figures vary depending on the source and specific engagement, it is widely reported to have an interception rate of over 90% against rockets fired by Palestinian militant groups.
Saving Lives and Reducing Damage
This high success rate translates directly into saving civilian lives and preventing widespread damage to infrastructure. Before the Iron Dome, rocket attacks often resulted in significant casualties and widespread fear. The system has fundamentally changed the calculus of such attacks, offering a tangible layer of protection.
Psychological Impact
Beyond its physical capabilities, the Iron Dome has also had a significant psychological impact. It provides a sense of security to the civilian population, reducing the constant anxiety associated with rocket threats and allowing for a greater sense of normalcy during periods of heightened tension.
Technological Evolution and Future Prospects
The Iron Dome is not a static system; it is continuously being upgraded and improved to counter evolving threats. Its development represents a significant advancement in defensive technology, and its future promises even greater capabilities.
Ongoing Research and Development
Rafael Advanced Defense Systems and its partners are committed to the continuous research and development of the Iron Dome. This includes enhancing its radar capabilities, improving the accuracy and range of its interceptors, and developing more sophisticated targeting algorithms. The goal is to stay ahead of the curve in a constantly evolving threat landscape.
Countering New Threats
As adversaries develop new types of projectiles, the Iron Dome’s systems are adapted to counter these emerging threats. This might involve developing new interceptor designs or refining the radar’s ability to detect and track novel projectile trajectories and signatures.
Integration with Broader Defense Networks
Future iterations of the Iron Dome are expected to be further integrated into broader, multi-layered air and missile defense networks. This will allow for more comprehensive protection against a wider range of aerial threats, from drones to long-range ballistic missiles. The concept of a unified air defense umbrella, where different systems complement each other, is a key area of development.
International Interest and Applications
The success of the Iron Dome has generated significant international interest. Several countries have explored or acquired similar air defense systems, recognizing the vital need for robust protection against short-range rocket and mortar attacks. Its operational concept and technological solutions have become a benchmark for defensive systems globally.
Export and Collaboration
While the primary focus remains on Israel’s defense, there have been discussions and some instances of export and collaboration with allied nations seeking to bolster their own defensive capabilities. This international engagement underscores the system’s proven effectiveness and its role as a significant innovation in global security.
