The Foundation of Understanding Transformational Dynamics
The concept of an “eigenspace” is a cornerstone of linear algebra, a branch of mathematics that deals with vectors, vector spaces, and linear transformations. While the term might sound abstract and perhaps even intimidating, its underlying principles are fundamental to understanding how linear systems behave, particularly when subjected to transformations. In essence, an eigenspace provides a way to identify specific directions within a vector space that remain unchanged in direction, only scaled, when a linear transformation is applied. This unique characteristic makes eigenspaces invaluable for analyzing a vast array of phenomena, from the behavior of quantum mechanical systems to the intricate dynamics of flight control in advanced drones.
Linear Transformations and the Unchanging Directions
At its heart, linear algebra is concerned with functions that preserve vector addition and scalar multiplication. These are known as linear transformations. Imagine a transformation as a geometric operation applied to every vector in a space – it might stretch, shrink, rotate, or shear these vectors. Most vectors, after undergoing a linear transformation, will point in a new direction. However, there are special vectors, called eigenvectors, that, when transformed, do not change their direction. They only get scaled by a factor, which is called an eigenvalue.
For example, consider a simple 2D transformation that stretches vectors along the x-axis by a factor of 2 and leaves vectors along the y-axis unchanged. Any vector pointing purely along the x-axis, like $(1, 0)$, will be transformed into $(2, 0)$. Its direction remains the same, and its length is doubled. Similarly, any vector pointing purely along the y-axis, like $(0, 1)$, will be transformed into $(0, 1)$. Its direction and length are unchanged. These are our eigenvectors. The scaling factor for the x-axis eigenvector is 2, and the scaling factor for the y-axis eigenvector is 1.

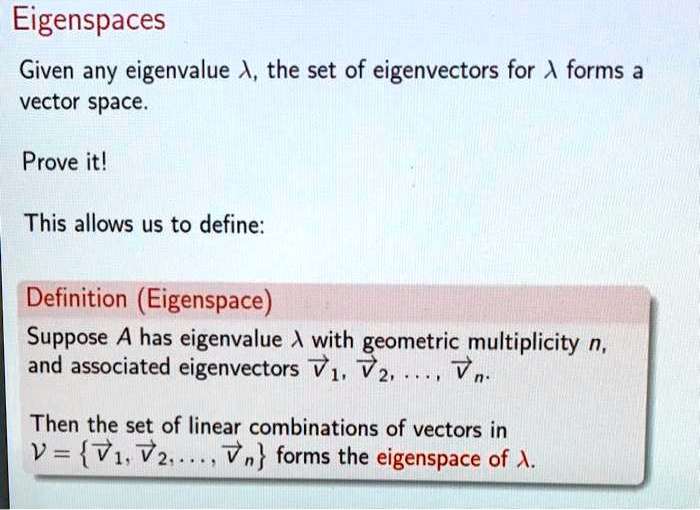

Defining the Eigenspace
While eigenvectors are individual vectors with this special property, an eigenspace is a collection of these eigenvectors, along with the zero vector. Crucially, an eigenspace is not just a set of vectors; it’s a subspace. This means that if you take any two vectors within an eigenspace and add them together, the resulting vector will also be in that same eigenspace. Likewise, if you scale any vector in an eigenspace by any scalar number, the resulting vector will also belong to that eigenspace. This property arises directly from the definition of linear transformations and eigenvectors.
Let $A$ be a matrix representing a linear transformation. If $mathbf{v}$ is an eigenvector of $A$ with eigenvalue $lambda$, then by definition, $Amathbf{v} = lambdamathbf{v}$. Now, consider another eigenvector $mathbf{w}$ corresponding to the same eigenvalue $lambda$. So, $Amathbf{w} = lambdamathbf{w}$. If we add $mathbf{v}$ and $mathbf{w}$, their sum is $mathbf{v} + mathbf{w}$. Applying the transformation $A$ to this sum:
$A(mathbf{v} + mathbf{w}) = Amathbf{v} + Amathbf{w} = lambdamathbf{v} + lambdamathbf{w} = lambda(mathbf{v} + mathbf{w})$.
This shows that the sum of two eigenvectors for the same eigenvalue is also an eigenvector for that same eigenvalue.
Similarly, if we scale an eigenvector $mathbf{v}$ by a scalar $c$:
$A(cmathbf{v}) = c(Amathbf{v}) = c(lambdamathbf{v}) = lambda(cmathbf{v})$.
This demonstrates that scaling an eigenvector by a scalar results in a vector that is also an eigenvector with the same eigenvalue.
The zero vector, $mathbf{0}$, also trivially satisfies the condition: $Amathbf{0} = lambdamathbf{0}$ for any $lambda$. Because the eigenspace is closed under vector addition and scalar multiplication, it forms a vector subspace. For each distinct eigenvalue, there is a corresponding eigenspace. These eigenspaces represent fundamental directions or modes of behavior of the linear transformation.
Eigenspaces in Flight Technology: Stabilization and Navigation
The principles of eigenspaces have profound implications for flight technology, particularly in the realm of stabilization and navigation systems for drones and other aircraft. Modern drones rely on sophisticated algorithms to maintain stability, adjust to atmospheric disturbances, and execute precise maneuvers. These algorithms often involve complex linear transformations that model the aircraft’s dynamics.
Understanding Drone Dynamics
A drone, even a simple quadcopter, is a dynamic system. Its orientation, position, and velocity are constantly changing based on the forces applied by its rotors, external factors like wind, and the commands from its control system. The mathematical representation of these forces and their effects on the drone’s motion can often be linearized around an equilibrium point, resulting in a set of linear differential equations. The matrices associated with these equations encapsulate the drone’s inherent dynamic characteristics.
When control systems apply adjustments, these are also linear transformations designed to counteract deviations and achieve desired states. Understanding how these transformations affect the drone’s state – its attitude, angular velocity, etc. – is critical. This is where eigenvectors and eigenspaces become indispensable.
Stabilization Systems and Eigenvectors
Consider a drone’s attitude stabilization system. Its goal is to maintain a specific orientation, even when subjected to external forces like turbulence. The system continuously measures the drone’s current attitude (e.g., pitch, roll, yaw) and angular rates. If there’s a deviation, the control system calculates corrective commands to the rotor speeds. This entire process can be modeled as a linear transformation.
Eigenvectors of the system’s dynamic matrix represent the “natural modes” of the drone’s motion. These are directions in the state space (which includes position, velocity, attitude, and angular rates) along which the drone’s motion is essentially decoupled from other modes. For instance, an eigenvector might represent a specific pitching oscillation that, once excited, would continue to oscillate with that specific frequency and decay rate, largely independent of roll or yaw movements, if the system were purely linear and unforced.
The eigenvalues associated with these eigenvectors tell us about the behavior of these modes. If an eigenvalue is negative and its real part is large in magnitude, the corresponding mode decays very quickly, meaning it’s stable. If the eigenvalue is positive, the mode grows exponentially, indicating instability. If the eigenvalue is purely imaginary, the mode oscillates indefinitely without decay.
The stabilization system aims to ensure that all eigenvalues of the combined drone dynamics and control system have negative real parts, leading to a stable, or at least controllable, system. The control algorithms are designed to manipulate the system’s matrices such that the eigenvalues are placed in desired locations in the complex plane, effectively “damping out” undesirable modes represented by eigenvectors.
Navigation and Position Control
Similarly, in navigation and position control, eigenspaces help in understanding how control inputs affect the drone’s trajectory. A navigation system aims to guide the drone from point A to point B. Control commands translate into adjustments in thrust and direction. Linear models can describe how these adjustments influence the drone’s velocity and position over time.
Eigenvectors of the position control system can highlight directions in which the drone responds strongly or weakly to control inputs. For example, a particular eigenvector might represent a mode of lateral drift that is harder to correct than a forward/backward motion. By analyzing these eigenspaces, engineers can design control gains and observer states that effectively manage all modes of motion, ensuring accurate and robust navigation.
The concept of modal analysis, which heavily relies on eigenspaces, is used to decompose complex system behavior into simpler, independent modes. This allows engineers to design controllers that target specific unstable or poorly behaved modes represented by certain eigenvectors, thus improving the overall performance and safety of the flight technology.
Cameras & Imaging: Understanding Gimbal Stability and Image Processing
The application of eigenspaces extends significantly into the domain of cameras and imaging, particularly in ensuring the stability of gimbal systems and optimizing image processing algorithms. For drones, the ability to capture smooth, professional-quality footage, especially at high resolutions like 4K, is paramount. This requires a deep understanding of how to counteract unwanted vibrations and movements, and eigenspaces play a crucial role in achieving this.
Gimbal Stabilization and Principal Components
A gimbal is a device that allows a camera to remain stable and independent of the drone’s movements. It typically uses motors and sensors to counteract pitch, roll, and yaw. The system’s effectiveness relies on its ability to accurately model and predict the drone’s motion and apply counter-movements. The data streams from gyroscopes and accelerometers on the drone and within the gimbal itself can be viewed as vectors in a multi-dimensional space.
When analyzing the typical movements and vibrations that a gimbal needs to suppress, we are essentially looking at the variance and correlation of sensor data. This is where Principal Component Analysis (PCA), a dimensionality reduction technique, becomes relevant. PCA fundamentally relies on finding the eigenvectors of the covariance matrix of the data.
The eigenvectors of the covariance matrix, called principal components, represent the directions of maximum variance in the data. The corresponding eigenvalues indicate the amount of variance along these directions. In the context of a gimbal, the principal components can identify the dominant modes of unwanted motion. For instance, the first principal component might capture the most significant source of vibration, perhaps a harmonic related to the rotor speed. The second principal component might capture a different type of oscillation, and so on.
By understanding these principal components (eigenspaces), the gimbal’s control system can be designed to specifically target and mitigate the most influential sources of image shake. The algorithms can prioritize damping or eliminating motion along these eigenvector directions, leading to significantly smoother footage. Instead of trying to correct for every conceivable tiny fluctuation, the system can focus its computational resources and motor effort on the most impactful modes of instability.
Image Processing and Feature Extraction
Beyond stabilization, eigenspaces also find application in advanced image processing techniques used with drone cameras. For example, in tasks like object recognition, feature extraction, and anomaly detection, PCA can be used to reduce the dimensionality of image data while retaining the most important information.
When dealing with high-resolution images or video streams, the amount of data can be immense. PCA can be applied to a set of images (e.g., a collection of faces, or a dataset of aerial views of a specific terrain) to find a basis (an eigenspace) for representing these images. The eigenvectors, often referred to as “eigenfaces” in the context of facial recognition, capture the most significant variations across the dataset. Any image in the dataset can then be represented as a linear combination of these eigenvectors.
This means that instead of storing and processing the full, high-dimensional image data, we can represent it more compactly using its projection onto a lower-dimensional eigenspace. This drastically reduces storage requirements and speeds up subsequent processing, such as searching for similar images or identifying specific features. For drone applications like mapping, surveillance, or environmental monitoring, where large volumes of imagery are processed, this dimensionality reduction is critical for efficiency.
Furthermore, in applications like thermal imaging from drones, identifying subtle temperature variations or anomalies can be challenging. PCA can help by identifying the principal modes of thermal variation, allowing engineers to then look for deviations from these dominant patterns, thereby enhancing the detection of small but significant thermal signatures that might otherwise be obscured by noise or common environmental fluctuations. The eigenspace thus provides a framework for understanding the “normal” or dominant patterns, making deviations more apparent.
Tech & Innovation: AI, Autonomous Flight, and Mapping
The cutting edge of drone technology is increasingly driven by artificial intelligence, autonomous flight capabilities, and sophisticated mapping and remote sensing applications. At the core of these innovations lies the ability to process complex data, make intelligent decisions, and control the drone’s behavior in dynamic environments. Eigenspaces, as a fundamental concept in understanding linear transformations, provide a powerful mathematical lens through which these advanced capabilities can be understood and developed.
AI Follow Mode and Trajectory Prediction
Many modern drones feature an “AI Follow Mode” that allows them to autonomously track a subject, such as a person or a vehicle. This involves real-time perception, object recognition, and sophisticated trajectory prediction. The drone needs to anticipate the subject’s movement to maintain a desired distance and angle.
The underlying algorithms for trajectory prediction often involve modeling the subject’s past movements as a sequence of vectors. Linear models, or piecewise linear approximations of non-linear paths, can be used to forecast future positions. In this context, eigenspaces can emerge when analyzing patterns of motion. If an AI observes a particular type of movement – for example, a car consistently turning left at intersections – this repetitive pattern can be described by a set of eigenvectors that capture the dominant modes of deviation from a straight path.
By projecting the subject’s recent motion onto this eigenspace, the AI can efficiently predict where the subject is likely to be in the near future. The eigenvalues associated with these modes would indicate how strongly that particular type of motion contributes to the overall trajectory. This allows the AI to make more informed and proactive adjustments to the drone’s flight path, ensuring smoother and more reliable tracking.
Autonomous Flight and Decision-Making
The realization of fully autonomous flight, where drones can navigate complex environments without human intervention, heavily relies on sophisticated decision-making algorithms. These algorithms must process sensor data (from cameras, LiDAR, radar, etc.), interpret the environment, and plan a safe and efficient course of action.
When modeling the drone’s control system and its interactions with the environment, linear algebra plays a crucial role. The state of the drone and its surroundings can be represented by large vectors, and the actions it can take are often modeled as linear transformations applied to this state.
Eigenspaces become relevant when analyzing the stability and controllability of the autonomous system. For instance, if the drone needs to perform a complex maneuver, like landing on a moving platform, the control system must be able to manage multiple degrees of freedom simultaneously. By identifying the eigenspaces of the system, engineers can understand which modes of motion are inherently stable, which are easily controlled, and which might require special attention. This understanding guides the design of the decision-making logic, ensuring that the drone can safely navigate through various scenarios.
Mapping and Remote Sensing: Data Analysis and Feature Identification
Drone-based mapping and remote sensing, whether for agricultural monitoring, environmental surveying, or urban planning, generate vast amounts of data. Processing this data efficiently and extracting meaningful information is a significant challenge. Eigenspaces, particularly through techniques like PCA, are instrumental here.
Imagine a drone collecting multispectral or hyperspectral imagery. This creates datasets with many channels of information for each pixel. To analyze this data and identify specific features – like crop health, soil types, or the presence of certain minerals – PCA can be used to reduce the dimensionality of the spectral data. The eigenvectors of the spectral covariance matrix would represent the principal spectral signatures.
By projecting the spectral data of each pixel onto these principal components, we can create a lower-dimensional representation that captures the most significant spectral variations in the scene. This makes it easier to build classification models that can distinguish between different land cover types or identify anomalies. The eigenspace defined by these principal components essentially captures the “essence” of the spectral variability, making downstream analysis more tractable and efficient.
Furthermore, in LiDAR-based mapping, the point cloud data represents a 3D structure. Analyzing the local geometry of these points can reveal features like road surfaces, building edges, or vegetation types. Techniques related to eigenspace analysis can be applied to fit local planes or other geometric shapes to subsets of points, and the eigenvectors of the covariance matrix of the local points can describe the local surface orientation and curvature. This detailed geometric understanding is vital for creating accurate and detailed 3D maps and models from drone-collected data.
