What is Blowby on a Diesel Engine?

Blowby in a diesel engine refers to the unintended leakage of combustion gases past the piston rings and into the crankcase. This phenomenon is a critical aspect of diesel engine operation and maintenance, impacting performance, emissions, and engine longevity. Understanding the causes, consequences, and mitigation strategies for blowby is essential for anyone involved with diesel engine technology.

The Mechanics of Blowby

Piston and Cylinder Dynamics

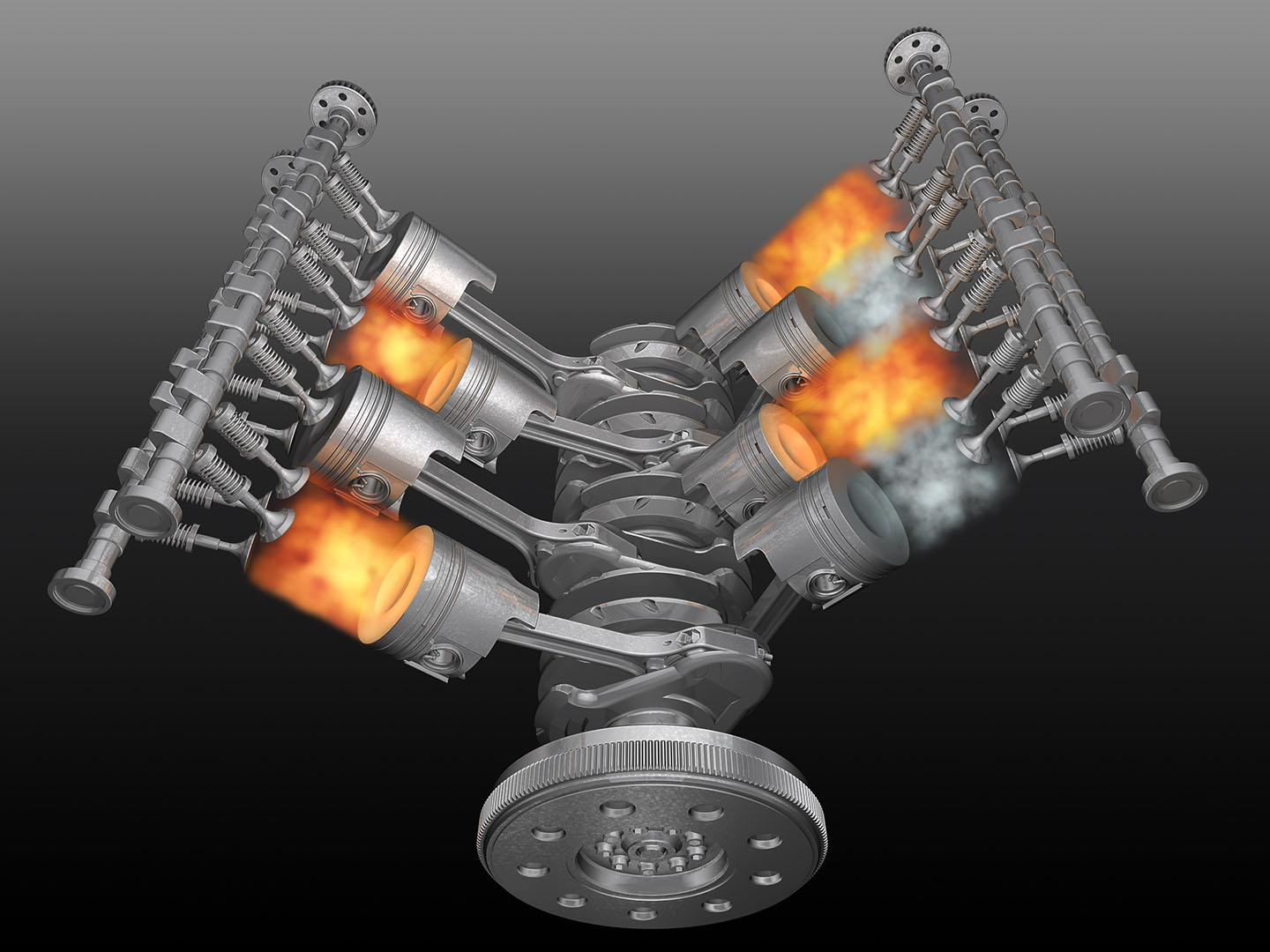

At the heart of the diesel engine are the pistons, which reciprocate within cylindrical bores. The tight tolerance between the piston skirt and the cylinder wall, combined with the piston rings, is designed to create a seal that prevents combustion gases from escaping. The piston rings, typically made of cast iron or steel, are engineered with specific shapes and tensions to:

Seal the combustion chamber: This is their primary function, ensuring that the immense pressure generated during combustion is directed downwards to drive the crankshaft.
Transfer heat: The rings help to transfer heat from the piston to the cylinder wall, where it can be dissipated by the cooling system.
Scrape oil: The oil control rings on the piston remove excess lubricating oil from the cylinder walls, preventing it from entering the combustion chamber and being burned.

During the compression and power strokes of a diesel engine, the pressure within the combustion chamber can reach extremely high levels. Ideally, the piston rings create a near-perfect seal against the cylinder walls. However, even in a well-maintained engine, a small amount of gas leakage is inevitable. Blowby occurs when this leakage exceeds acceptable levels.

Factors Contributing to Blowby

Several factors can contribute to or exacerbate blowby in a diesel engine:

Worn Piston Rings: Over time, the constant friction and high temperatures within the cylinder can cause piston rings to wear down. This wear reduces their ability to maintain a tight seal against the cylinder walls, allowing more combustion gases to escape.
Scored Cylinder Walls: Damage to the cylinder walls, such as scratches or scoring, can create pathways for gases to bypass the piston rings. These scores can be caused by abrasive particles entering the cylinder, inadequate lubrication, or improper assembly.
Worn or Damaged Pistons: The piston itself can be subject to wear, particularly the piston skirt. If the piston becomes deformed or develops wear, it can lead to a loss of contact with the cylinder wall, compromising the seal of the rings.
Improper Ring Seating: When an engine is rebuilt or new rings are installed, it is crucial that they “seat” properly against the cylinder walls. This process involves the rings conforming to the precise shape of the cylinder. If seating is incomplete, it can result in premature blowby.
Overheating: Extreme engine temperatures can cause the pistons to expand excessively, potentially leading to scuffing of the cylinder walls or distortion of the piston, both of which can induce blowby.
Excessive Crankcase Pressure: While blowby contributes to crankcase pressure, other issues like a blocked crankcase ventilation system can also lead to elevated pressures that may force gases past compromised seals.
Engine Load and Operating Conditions: Prolonged periods of heavy load or high-RPM operation can increase the stress on the piston ring and cylinder wall seal, potentially accelerating wear and contributing to blowby. Conversely, very light loads or frequent short-duration runs can lead to incomplete combustion and carbon buildup, which can interfere with ring sealing.

Consequences of Excessive Blowby

The presence of blowby, especially when it becomes excessive, can have a detrimental impact on various aspects of diesel engine operation. Ignoring blowby can lead to accelerated wear, reduced performance, and increased maintenance costs.

Performance Degradation

When combustion gases leak past the piston rings, they are escaping from the combustion chamber before their energy can be fully utilized to push the piston down. This directly translates to a loss of power and torque. The engine will feel less responsive, and its overall efficiency will decrease. In severe cases, significant blowby can lead to noticeable power loss and a struggle for the engine to maintain its rated output.

Oil Consumption and Contamination

Blowby gases are hot and contain unburned fuel, soot, and other combustion byproducts. As these gases enter the crankcase, they mix with the engine oil. This contamination degrades the oil’s lubricating properties, reducing its ability to protect engine components. The contaminants can accelerate wear on bearings, camshafts, and other critical parts.

Furthermore, the increased pressure within the crankcase due to blowby can force oil past seals and gaskets, leading to oil leaks. In some instances, the blowby gases can also carry oil vapor into the intake system, contributing to oil consumption and carbon buildup in the intake manifold and on valve stems.

Crankcase Pressurization and Ventilation Issues

The crankcase is designed to operate under a slight vacuum or positive pressure, managed by the Positive Crankcase Ventilation (PCV) system. Excessive blowby significantly increases the pressure within the crankcase. This over-pressurization can:

Damage Seals and Gaskets: The increased pressure can force oil out through even minor imperfections in seals and gaskets, leading to leaks.
Interfere with PCV System: A PCV system designed to handle normal blowby levels can become overwhelmed by excessive blowby, failing to effectively vent the crankcase. This can lead to further pressure buildup and the accumulation of harmful vapors.
Affect Engine Operation: In extreme cases, severe crankcase pressurization can create drag on internal engine components, further impacting performance.

Emissions Increases

The unburned fuel, soot, and other hydrocarbons present in blowby gases contribute to increased tailpipe emissions. These gases, if not properly managed by the emission control systems, can lead to higher levels of particulate matter (PM), nitrogen oxides (NOx), and unburned hydrocarbons (HC) being released into the atmosphere. This is particularly problematic in modern diesel engines that are subject to stringent emissions regulations.

Accelerated Engine Wear

As mentioned, contaminated oil leads to accelerated wear of internal engine components. The increased pressure from blowby also puts additional stress on bearings and other rotating parts. Over time, untreated blowby can significantly shorten the lifespan of the engine, leading to more frequent and costly repairs.

Diagnosis and Measurement of Blowby

Identifying and quantifying blowby is crucial for diagnosing engine problems and determining the extent of any issues. Fortunately, there are several methods and indicators that mechanics and engine enthusiasts can use.

Visual and Auditory Indicators

Excessive Smoke from Oil Filler Cap or Dipstick Tube: When the engine is running, removing the oil filler cap or dipstick should reveal minimal to no puffing of smoke or gases. A noticeable expulsion of blue-ish smoke or a strong puffing sound indicates significant blowby.
Oil Leaks: As discussed, increased crankcase pressure can cause oil to seep from seals and gaskets that might otherwise be in good condition.
Engine Performance Issues: A general feeling of sluggishness, lack of power, or poor fuel economy can be an indirect indicator of blowby.

Pressure and Flow Measurement

Crankcase Pressure Test: This is a more direct diagnostic method. A gauge is connected to a port on the crankcase, and the engine is run at a specified RPM. Excessive crankcase pressure readings compared to manufacturer specifications indicate blowby.
Blowby Flow Meter: Specialized tools called blowby flow meters can be attached to the PCV system or a dedicated blowby port to measure the volume of gases escaping into the crankcase per unit of time. This provides a quantitative measure of blowby.
Manifold Vacuum Test: While not a direct blowby test, a significant and fluctuating drop in manifold vacuum while the engine is at idle can sometimes be indicative of blowby, as gases are escaping the combustion chamber.

Oil Analysis

Regular oil analysis can provide valuable insights into the health of an engine, including the presence of blowby. Elevated levels of certain contaminants in the oil, such as soot or fuel, can suggest that combustion gases are entering the crankcase.

Mitigation and Prevention of Blowby

Addressing blowby involves a combination of proper maintenance, timely repairs, and sometimes, design considerations.

Maintenance Practices

Regular Oil Changes: Using the correct grade of engine oil and adhering to recommended oil change intervals is fundamental. Clean oil lubricates better and helps to maintain the integrity of piston rings and cylinder walls.
Air Filter Maintenance: A dirty air filter restricts airflow, forcing the turbocharger to work harder and potentially leading to increased intake manifold pressure. This can indirectly stress the sealing components. Ensuring the air filter is clean is vital.
Fuel System Maintenance: Proper fuel injector function ensures efficient combustion. Carbon buildup or poor spray patterns from injectors can lead to incomplete combustion and increased soot, which can interfere with ring sealing.
Cooling System Integrity: Overheating is a significant contributor to piston and cylinder wall damage. Ensuring the cooling system is functioning optimally, with correct coolant levels and thermostat operation, is crucial.

Addressing Mechanical Issues

When blowby is diagnosed, the underlying mechanical cause must be addressed. This typically involves:

Piston Ring Replacement: If worn piston rings are the culprit, they must be replaced. This often necessitates removing the cylinder head and potentially the oil pan.
Cylinder Honing or Replacement: If cylinder walls are scored or worn beyond their service limit, they may need to be honed to a new bore size and fitted with oversized pistons and rings, or the cylinder liners themselves may need to be replaced.
Piston Replacement: Damaged or worn pistons should be replaced.
Engine Rebuild: In cases of widespread wear or damage, a full engine rebuild might be necessary, involving the replacement of pistons, rings, bearings, and potentially crankshaft and camshaft components.

Crankcase Ventilation Systems (PCV)

Modern diesel engines employ sophisticated PCV systems, often incorporating oil separators, to manage crankcase vapors. Ensuring these systems are clean, free from blockages, and functioning correctly is essential. A properly functioning PCV system can help to mitigate the negative effects of normal levels of blowby by venting the crankcase, but it cannot overcome excessive blowby caused by mechanical wear.

Advanced Considerations and Future Trends

The challenge of blowby is an ongoing concern in diesel engine design and operation, particularly as engines are pushed to achieve higher power outputs and meet ever-stricter emissions standards.

Turbocharging and High Cylinder Pressures

The widespread use of turbocharging in diesel engines leads to significantly higher cylinder pressures and temperatures compared to naturally aspirated engines. While this enhances performance and efficiency, it also places greater stress on the piston ring seal. Engine designers must carefully balance performance gains with the durability of the sealing components. Advanced materials and coatings for piston rings and cylinder liners are continuously being developed to improve wear resistance and sealing capabilities under these demanding conditions.

Emissions Control Systems

Blowby gases, with their high content of unburned hydrocarbons and soot, are a significant concern for emissions. Advanced emissions control systems, such as Diesel Particulate Filters (DPFs) and Selective Catalytic Reduction (SCR) systems, are designed to treat exhaust gases. However, if blowby is excessive, it can overwhelm these systems, leading to premature clogging of DPFs or reduced efficiency of SCR systems. Managing blowby effectively is therefore indirectly crucial for the performance of these emissions control technologies.

Oil Control and Filtration

The contamination of engine oil by blowby gases is a major factor in accelerated wear. Therefore, advanced oil filtration systems and oil condition monitoring technologies are becoming increasingly important. These systems aim to remove contaminants from the oil more effectively and to alert operators to potential issues before they cause significant damage.

Engine Monitoring Systems

Modern diesel engines are equipped with sophisticated electronic control units (ECUs) that monitor numerous engine parameters. While direct blowby measurement is not typically a standard sensor input, ECUs can infer potential blowby issues by analyzing trends in oil pressure, crankcase pressure (if sensors are present), and exhaust gas characteristics. This allows for early warning and diagnostic capabilities.

In conclusion, blowby is an inherent phenomenon in diesel engines, but its severity can vary greatly. Understanding its causes, consequences, and the methods for its diagnosis and mitigation is paramount for ensuring the longevity, performance, and environmental compliance of these powerful machines. Proactive maintenance and prompt attention to any signs of excessive blowby will save significant costs and prevent premature engine failure.
